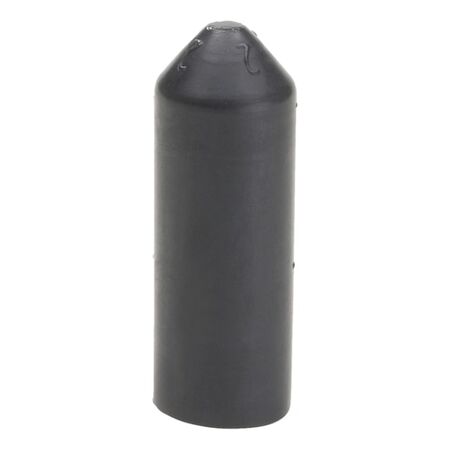

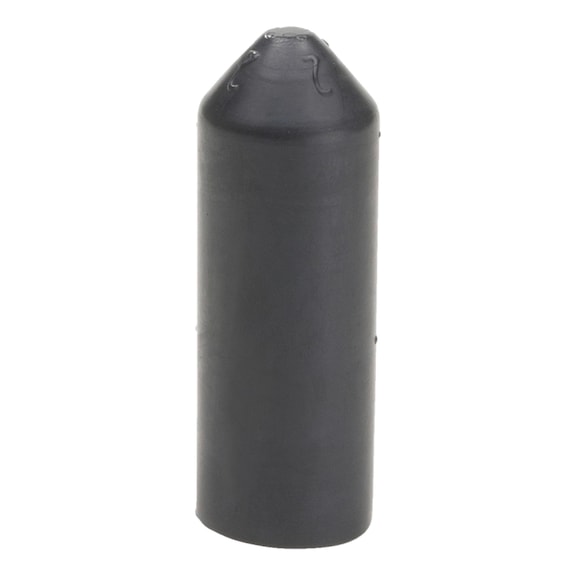

Heat Shrink End Cap | 20mm Diameter | Hot-Melt Adhesive Coating | @Pack of 5 | by Wurth
Heat Shrink End Cap with a 20mm diameter and hot-melt adhesive coating is perfect for sealing the ends of wires and cables against moisture. Designed for professional installation, it offers excellent physical, chemical, and thermal properties, ensuring durability and reliability in electrical applications. Ideal for protecting cables during storage and transport, this end cap is a must-have for technicians and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink End Cap | 20mm Diameter | Hot-Melt Adhesive Coating | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 975301102
Alternatively Known As: Heat shrink tubing end cap, Shrink tube end cap, Cable end seal, Wire end cap
Technical Specifications
- Type: 20/7.5
- Diameter (D): 20 mm
- Diameter (shrunk): 6 mm
- Length (shrunk): 55 mm
- Sleeve-wall thickness when shrunk: 2.8 mm
- Dielectric strength: 12 kV/mm
- Temperature range: -55 to 110 °C
- Minimum shrinkage temperature: 120 °C
- Elongation after shrinking: 0-10%
- Material: Polyolefin
- Ultraviolet resistance: Yes
- Dimensions (H x L x W): 55mm x 20mm x 20mm
- Weight: 0.05 kg
Key Features
- Inside coated with hot-melt adhesive
- Good physical, chemical and thermal properties
- Ultraviolet resistance
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and shrinkage.
Applications
- Sealing the ends of wires, cables, and pipes against moisture during storage and transport
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects cables and wires from moisture damage, extending product lifespan and reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Heat Shrink End Cap ENDCAP HSHR 20 6MM 5 PCS is available for immediate purchase, ideal for electrical and cable protection applications.
