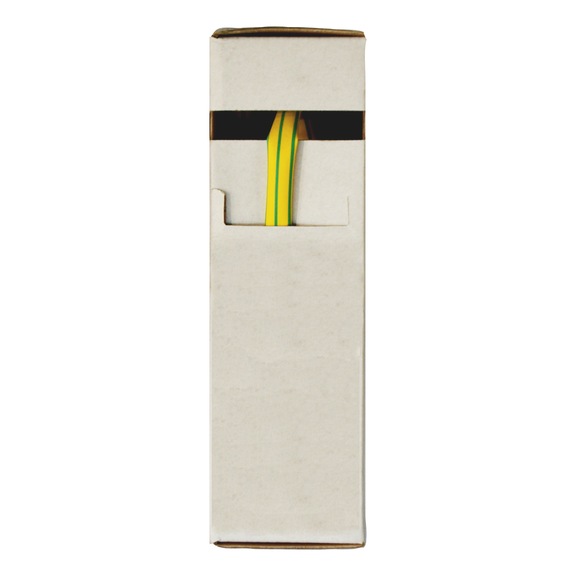

Heat Shrink Sleeve | Polyolefin Material | Flame-Retardant | High Dielectric Strength | by Wurth
Heat Shrink Sleeve made from durable polyolefin material offers exceptional electrical insulation and protection for wiring and connections. With a high dielectric strength of 15 kV/mm and a temperature resistance range of -55 to 125 °C, it's perfect for automotive and industrial applications. Ideal for qualified electricians, this tubing ensures safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Sleeve | Polyolefin Material | Flame-Retardant | High Dielectric Strength | by Wurth
Brand: Wurth
SKU: 771564
Alternatively Known As: Heat Shrink Sleeve, Heat Shrink Tube, Electrical Insulation Tubing, Polyolefin Shrink Tubing
Technical Specifications
- Colour: Green, Yellow
- Diameter: 6.5 mm
- Diameter (shrunk): 1.5 mm
- Sleeve-wall thickness when shrunk: 0.65 mm
- Dielectric strength: 15 kV/mm
- Min./max. shrinkage temperature: 70 to 120 °C
- Min./max. temperature conditions: -55 to 125 °C
- Material: Polyolefin
- Flame-retardant: Yes
- Length: 10 m
- Dimensions (H x L x W): 50mm x 172mm x 163mm
- Weight: 0.1 kg
Key Features
- Flame-retardant polyolefin material
- High dielectric strength of 15 kV/mm
- Shrinkage temperature range from 70 to 120 °C
- Temperature resistance from -55 to 125 °C
- Sleeve-wall thickness of 0.65 mm when shrunk
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation for wiring and connections
- Protection of cables in automotive and industrial applications
- Environmental protection for electrical components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Flame-retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Polyolefin Heat Shrink Tubing is available now for immediate purchase. Ideal for electrical insulation and protection in industrial and residential electrical installations.
