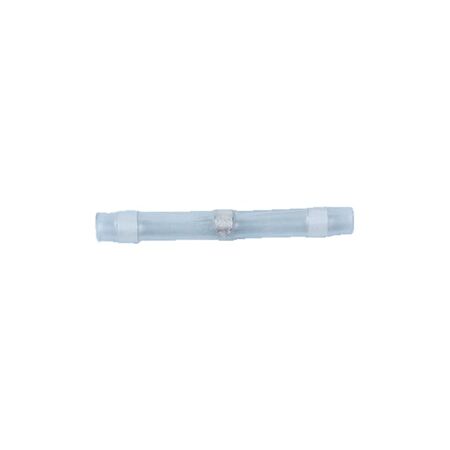

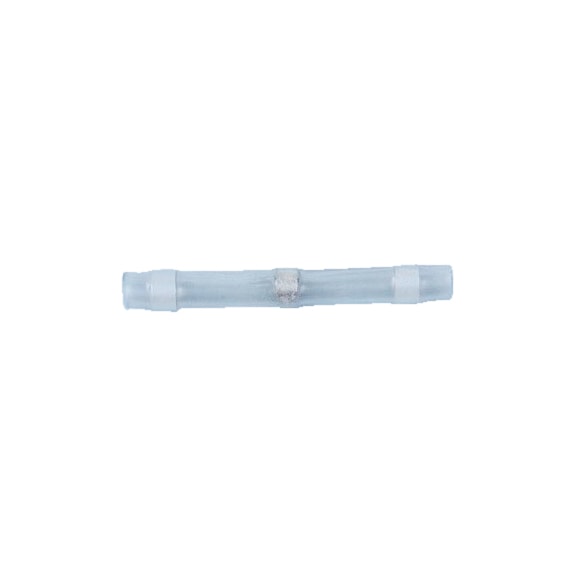

Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Dust-Proof & Damp-Proof | by Wurth
The Heat-Shrink Solder Butt Connector is designed for reliable electrical connections, featuring IP67 protection against moisture and dust. Ideal for automotive, marine, and industrial applications, it comes pre-filled with solder for secure joints and is perfect for electrical wiring repairs. With a temperature range of -55 to 125 °C, this connector ensures durability and longevity in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Dust-Proof & Damp-Proof | by Wurth
Brand: Wurth
SKU: 5559230
Alternatively Known As: Heat Shrink Solder Sleeve, Heat Shrink Butt Connector, Solder Seal Connector, Waterproof Heat Shrink Connector
Technical Specifications
- Min./max. wire cross section: 0.3-0.8 mm²
- Max. bundle diameter: 1.7 mm
- Colour: White
- Dielectric strength: 2 kV/mm
- IP protection class: IP67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 500 °C
- Length: 26 mm
- Dimensions (H x L x W): 6mm x 26mm x 6mm
- Weight: 0.01 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- Pre-filled with solder for secure and reliable electrical joints
- Avoids localised overheating of the heat-shrink tubing
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper heat application and secure electrical connections.
Applications
- Electrical wiring repairs and connections
- Automotive wiring harnesses
- Marine and outdoor electrical connections
- Industrial electrical installations requiring moisture and dust protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable and long-lasting electrical connections reducing the need for frequent repairs and waste
- Protects connections from moisture and dust, preventing corrosion and extending product life
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to the product documentation for specific terms.
Available Now
The Wurth Heat-Shrink Solder Butt Connector is available now for immediate purchase. Ideal for electrical wiring repairs and moisture-resistant connections in automotive, marine, and industrial applications.
