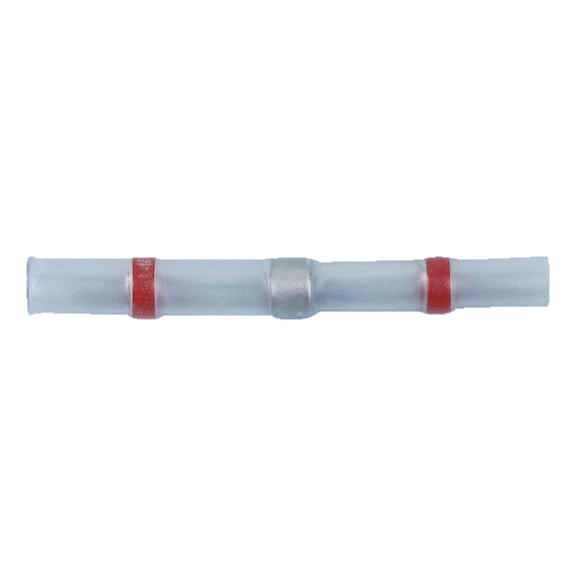

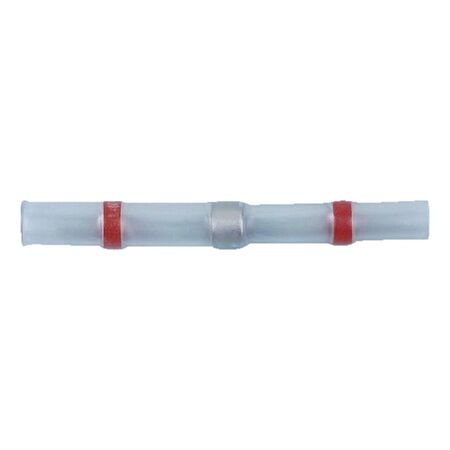

Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Red Color | @Pack of 10 | by Wurth
Heat-shrink solder butt connectors are essential for creating secure and moisture-resistant electrical connections. With a robust IP67 rating and pre-filled solder, these connectors ensure reliable joints in automotive, marine, and household applications. Ideal for professional installations, they provide dust-proof and damp-proof connections, making them perfect for various wiring repairs and installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Red Color | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5559231
Alternatively Known As: Heat shrink solder sleeve, solder seal connector, heat shrink butt splice, soldering wire connector
Technical Specifications
- Min./max. wire cross section: 0.8-2.0 mm²
- Max. bundle diameter: 2.7 mm
- Colour: Red
- Dielectric strength: 2 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 500 °C
- Length: 42 mm
- Dimensions (H x L x W): 6mm x 42mm x 6mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- Pre-filled with solder for secure and reliable joints
- Avoids localised overheating of the heat-shrink tubing
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper soldering and heat-shrink application for safety and compliance.
Applications
- Electrical wiring and repair
- Automotive wiring harnesses
- Marine and outdoor electrical connections
- Industrial and household electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable and long-lasting electrical connections reducing the need for frequent repairs and waste
- Protects connections from moisture and dust, enhancing longevity and safety
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Heat-Shrink Solder Butt Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring repairs and installations requiring secure, moisture-resistant connections.
