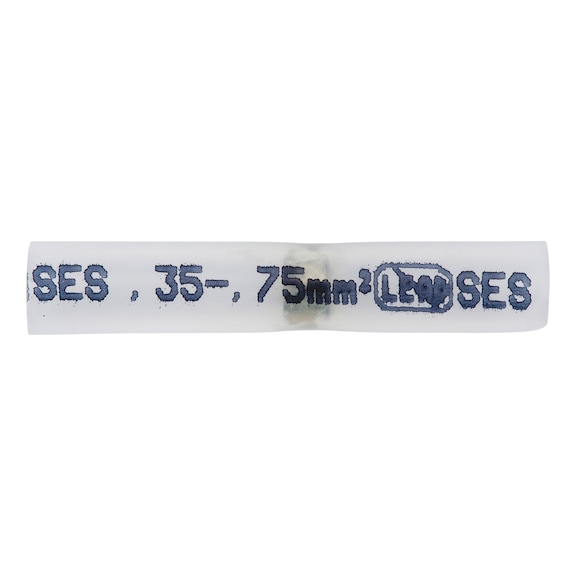

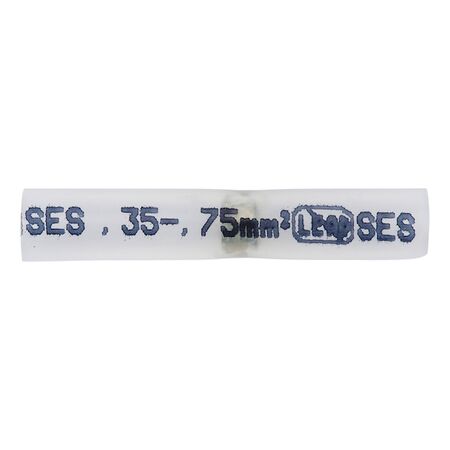

Heat Shrink Solder Connector | 0.35-0.75 mm² | IP67 Rated | 100% Adhesive-Coated | @Pack of 10 | by Wurth
Heat shrink solder connectors are designed for secure, insulated solder joints, ideal for electrical wiring and automotive repairs. With a wire cross-section range of 0.35-0.75 mm² and IP67 protection, these connectors ensure reliable performance in various environments. The 100% adhesive-coated tubing enhances safety and provides a user-friendly application, making them perfect for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Solder Connector | 0.35-0.75 mm² | IP67 Rated | 100% Adhesive-Coated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5558100
Alternatively Known As: Heat Shrink Butt Connector, Solder Sleeve Connector, Heat Shrink Solder Sleeve, Heat Shrink Butt Splice, Electrical Solder Connector
Technical Specifications
- Minimum/maximum wire cross section: 0.35-0.75 mm²
- Colour: White
- Dielectric strength: 36 kV/mm
- IP protection class: IP67
- Minimum/maximum temperature conditions: -55 to 110 °C
- Minimum shrinkage temperature: 500 °C
- Length: 27.5 mm
- Dimensions (H x L x W): 6mm x 27.5mm x 6mm
- Weight: 0.01 kg
Key Features
- 100% adhesive-coated heat-shrink tubing for increased safety compared to conventional solder connectors
- Lead-free solder with increased surface tension for higher tensile strength as solder does not disperse rapidly
- Larger internal diameter for more user-friendly application than conventional solder connectors
- Transparent heat-shrink tubing allows straightforward visual inspection of the connection
- RoHS-compliant, lead-free design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper soldering and heat shrinking for safety and compliance.
Applications
- Electrical wiring and connections requiring secure, insulated solder joints
- Automotive wiring repairs and installations
- Industrial and commercial electrical maintenance
- Marine and outdoor electrical connections requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free solder reduces hazardous material use and environmental contamination
- RoHS-compliant design ensures reduced environmental impact and safer disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Heat Shrink Solder Connector BUTTCON SLDR HSHRTUBE WHITE 0.35-0.75mm² 10 PCS is available now for immediate purchase. Ideal for electrical wiring and repair applications requiring secure, insulated solder joints.
