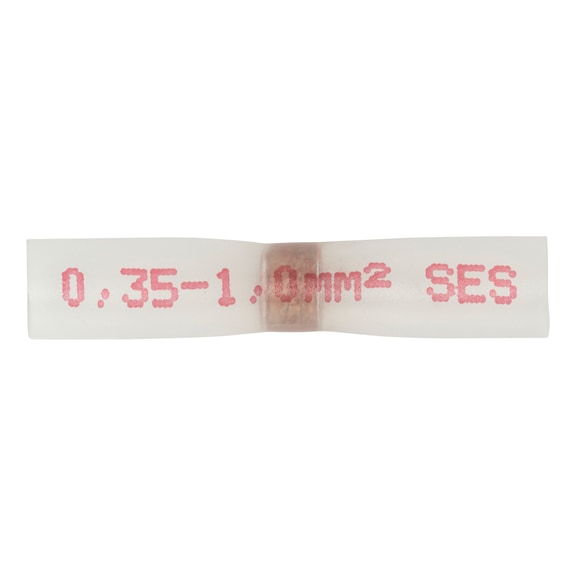

Heat Shrink Solder Connector | High-End Butt Connector | Red Colour Indicator | IP67 Rated | @Pack of 25 | by Wurth
The Heat Shrink Solder Connector is designed for reliable electrical connections, featuring a red colour indicator that ensures optimal soldering. Ideal for automotive, industrial, and general electrical applications, this high-end butt connector offers IP67 protection and is built with double-walled heat-shrink tubing for durability. With lead-free solder and transparent tubing for visual inspection, it guarantees secure and insulated wire joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Solder Connector | High-End Butt Connector | Red Colour Indicator | IP67 Rated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5558201
Alternatively Known As: Heat shrink solder butt connector, heat shrink solder splice, heat shrink solder sleeve, solder seal connector, heat shrink wire connector
Technical Specifications
- Min./max. wire cross section: 0.35-1.0 mm²
- Colour: Red
- Dielectric strength: 25 kV/mm
- IP protection class: IP67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 500 °C
- Length: 25.4 mm
- Dimensions (H x L x W): 6mm x 25.4mm x 6mm
- Weight: 0.01 kg
Key Features
- High-quality solder connector with double-walled heat-shrink tubing
- Lead-free solder with colour indicator to ensure optimal solder connection
- Transparent heat-shrink tubing allows visual inspection of the connection
- Fully adhesive-coated heat-shrink tubing for particularly tight and durable connections
- Able to withstand high mechanical stress due to double-walled tubing
- Above-average tensile strength with tough, lead-free solder
- Improved flexibility with small bending radii due to shorter heat-shrink tubing
- Red colour indicator dissolves when solder has melted sufficiently, ensuring perfect connection
- Prevents partially melted connections and transition resistance
- No burned heat-shrink tubing or protruding strands
Professional Installation Requirements
- Recommended to be installed by a qualified electrician or trained professional to ensure proper soldering and heat shrinking for optimal connection integrity.
Applications
- Electrical wiring and repair
- Automotive wiring connections
- Industrial and marine electrical connections
- Any application requiring secure, insulated soldered wire joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free solder reduces environmental and health hazards
- Durable and reliable connections reduce waste and need for rework
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
The Wurth Heat Shrink Solder Connector with Colour Indicator is available now for immediate purchase. Ideal for electrical wiring repairs and secure soldered connections in automotive, industrial, and general electrical applications.
