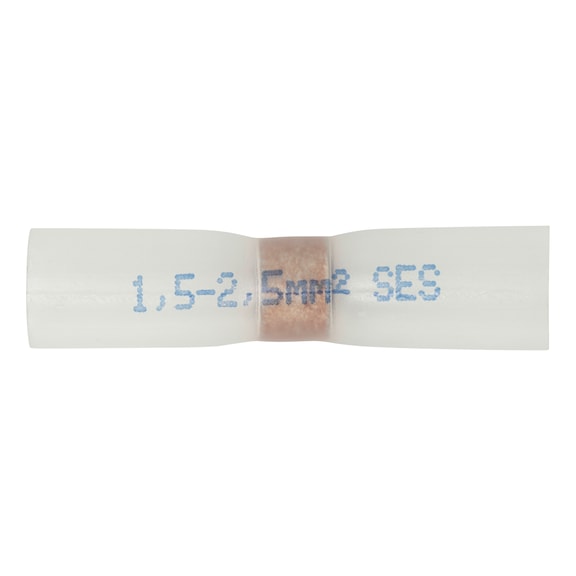

Heat Shrink Solder Connector | High-End Butt Connector | IP67 Waterproof | Blue Color Indicator | @Pack of 25 | by Wurth
The Heat Shrink Solder Connector is designed for reliable electrical connections, featuring a blue color indicator and IP67 waterproof rating. Ideal for automotive and industrial applications, this high-end butt connector ensures optimal soldering with its double-walled heat-shrink tubing and lead-free solder. Perfect for professional installations, it provides durable and secure connections in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Solder Connector | High-End Butt Connector | IP67 Waterproof | Blue Color Indicator | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5558202
Alternatively Known As: Heat shrink solder butt connector, solder seal connector, heat shrink splice connector, waterproof solder connector, blue heat shrink connector
Technical Specifications
- Wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Dielectric strength: 25 kV/mm
- IP protection class: IP67
- Temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 500 °C
- Length: 31.8 mm
- Dimensions (H x L x W): 6mm x 32mm x 6mm
- Weight: 0.02 kg
Key Features
- High-quality solder connector with double-walled heat-shrink tubing
- Lead-free solder with colour indicator to ensure optimal solder connection
- Transparent heat-shrink tubing allows visual inspection of the connection
- Fully adhesive-coated heat-shrink tubing for particularly tight and durable connections
- Withstands high mechanical stress due to double-walled tubing
- Above-average tensile strength with tough lead-free solder
- Improved flexibility with small bending radii due to shorter heat-shrink tubing
- Red colour indicator dissolves when solder has melted sufficiently, ensuring perfect connection
- Prevents partially melted connections and transition resistance
- No burned heat-shrink tubing or protruding strands
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper soldering and heat shrinking for optimal electrical and mechanical performance.
Applications
- Electrical wiring and cable repairs
- Automotive wiring harnesses
- Industrial electrical connections
- Marine and outdoor electrical installations requiring waterproof connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free solder reduces environmental toxicity
- Durable and reliable connections reduce need for rework and waste
- Heat-shrink tubing provides waterproof sealing, preventing corrosion and extending product life
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Heat Shrink Solder Connector with Colour Indicator is available for immediate purchase, ideal for electrical wiring repairs and installations requiring secure, waterproof connections.
