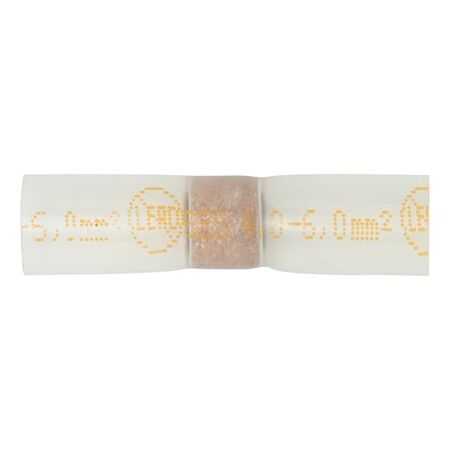

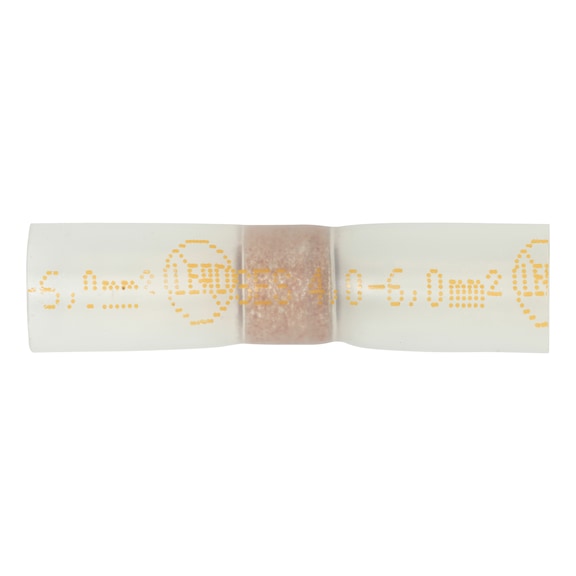

Heat Shrink Solder Connector | High-End Butt Connector | IP67 Rated | Yellow Color Indicator | @Pack of 25 | by Wurth
The Heat Shrink Solder Connector is designed for reliable electrical connections, featuring a yellow color indicator for optimal soldering. Ideal for automotive, marine, and industrial applications, this connector ensures secure, insulated joints with its IP67 rating, making it perfect for environments exposed to dust and water. With double-walled heat-shrink tubing and lead-free solder, it provides durability and flexibility for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Solder Connector | High-End Butt Connector | IP67 Rated | Yellow Color Indicator | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5558204
Alternatively Known As: Heat shrink butt connector, solder seal connector, heat shrink solder sleeve, waterproof solder connector, yellow heat shrink connector
Technical Specifications
- Wire cross section: 4-6 mm²
- Colour: Yellow
- Dielectric strength: 25 kV/mm
- IP protection class: IP67
- Temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 500 °C
- Length: 38.1 mm
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.02 kg

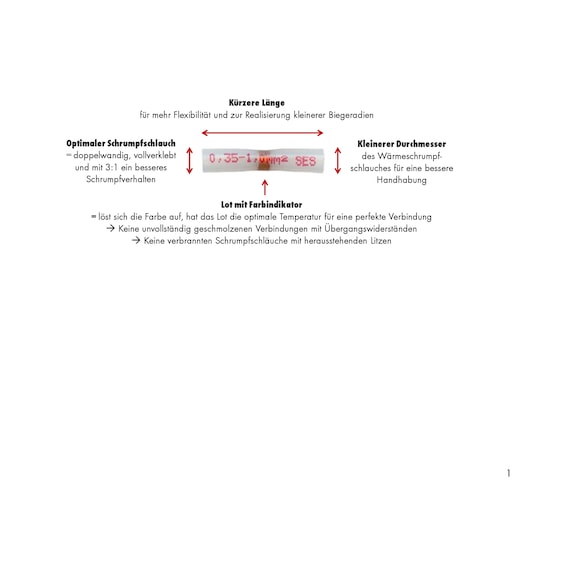

Key Features
- High-quality solder connector with double-walled heat-shrink tubing
- Lead-free solder with colour indicator to ensure optimal solder connection
- Transparent heat-shrink tubing allows visual inspection of the connection
- Fully adhesive-coated heat-shrink tubing for particularly tight and durable connections
- Withstands high mechanical stress due to double-walled tubing
- Above-average tensile strength from tough, lead-free solder with increased surface tension
- Improved flexibility with small bending radii due to shorter heat-shrink tubing
- Easy installation with small inner diameter to keep wires in place during shrinking
- Red colour indicator dissolves when solder has melted sufficiently, ensuring perfect connections
- Prevents partially melted connections and transition resistance
- IP67 rated for protection against dust and water
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper soldering and heat shrinking for optimal electrical and mechanical performance.
Applications
- Electrical wiring and cable joining
- Automotive and marine wiring repairs
- Industrial electrical connections requiring secure, insulated joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free solder reduces environmental toxicity
- Durable and reliable connections reduce waste from failed joints
- Heat-shrink tubing provides long-lasting insulation, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Wurth warranty policy.
Available Now
The Wurth Heat Shrink Solder Connector with Colour Indicator Yellow 4-6mm² is available for immediate purchase, ideal for electrical wiring repairs and secure cable connections.
