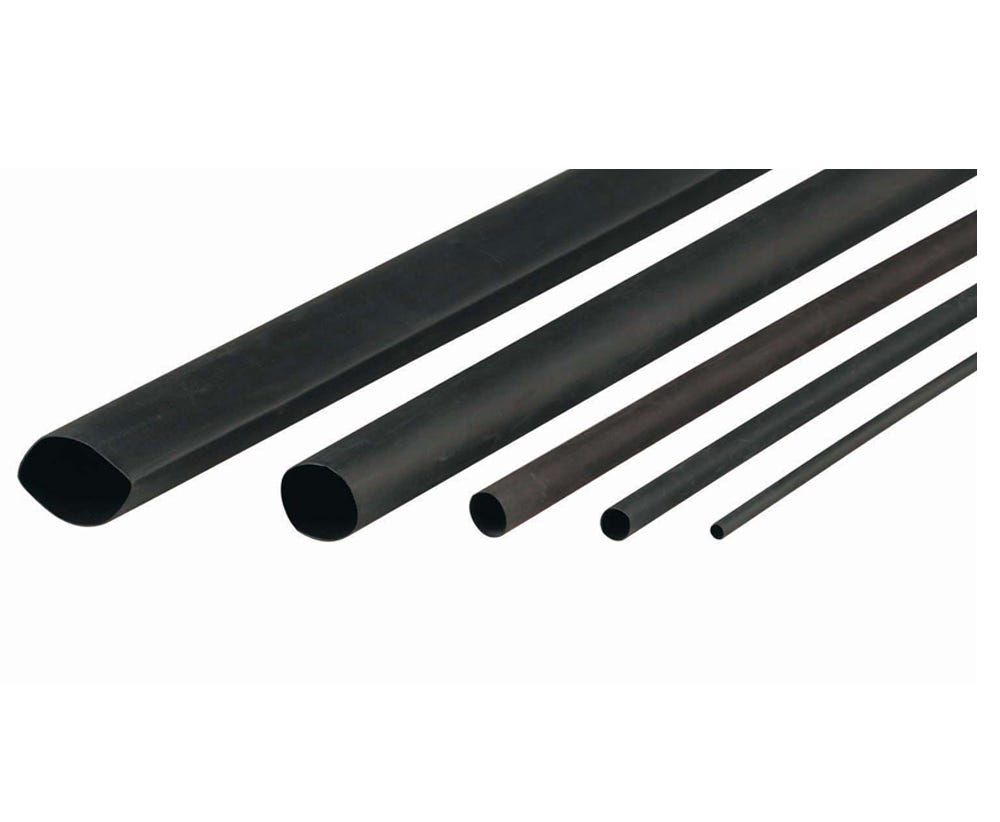

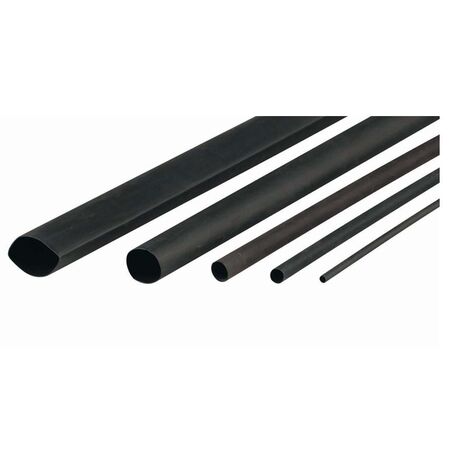

Heat Shrink Thin Wall 25.4mm Black Box of 10m Cabac
Cabac Thin Wall Heat Shrink features 25.4mm diameter, black colour, and 10m dispenser box. Ideal for insulating cable joints and terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Thin Wall Heat Shrink, Polyolefin Heat Shrink Tubing, Cable Heat Shrink Sleeve
Technical Specifications
- Product Range: CABAC XLP thin wall heat shrink
- Material: Electron beam cross-linked polyolefin
- Colour: Black
- Pre-Shrink Diameter: 25.4mm
- After-Shrink Diameter: 12.7mm
- Shrink Ratio: 2:1
- Recovered Wall Thickness: 0.5mm
- Length: 10m
- Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: Greater than 100°C
- Voltage Rating: 600V
- Breakdown Voltage: 25kV/mm wall thickness
- Tensile Strength: 16MPa
- Elongation at Break: 400%
- Water Absorption: 0.15% maximum
- Glue Lined: No
- Flammability: Flame retardant black tubing
- UV Stability: UV stabilised black tubing
- Conformant Standards: UL224, ASTM D2671, MIL-I-23053/5 and JIS
- Dimensions (H x L x W): 160mm x 160mm x 70mm
- Weight: 0.5 kg
Key Features
- 2:1 shrink ratio for general cable insulation and protection
- Designed for insulating cable joints, terminations and electrical connections
- Flexible cross-linked polyolefin construction
- Resistant to common fluids, solvents, abrasion and impact
- Flame retardant black formulation
- UV stabilised for outdoor and exposed applications
- Supplied in a practical 10m dispenser box
- Can be shrunk using a suitable heat gun or heat tunnel
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrical worker where the tubing is used within fixed wiring or electrical installations. Apply controlled heat evenly with a suitable heat gun and follow the manufacturer's instructions without overheating the cable or tubing.
Applications
- Insulating cable joints and terminations
- Protecting wire splices and electrical connections
- Cable bundling and strain relief
- Abrasion and mechanical protection for wiring
- Colour-neutral black sleeving for electrical and electronic assemblies
Environmental Benefits
- Extends the service life of protected cable joints and terminations, helping reduce premature replacement and material waste
- Cross-linked polyolefin construction provides durable protection against abrasion, fluids and environmental exposure
Warranty Information
CABAC publishes warranty conditions through its trading terms, but no fixed warranty period specific to this heat shrink tubing was identified. Australian Consumer Law guarantees apply where relevant.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock availability.
