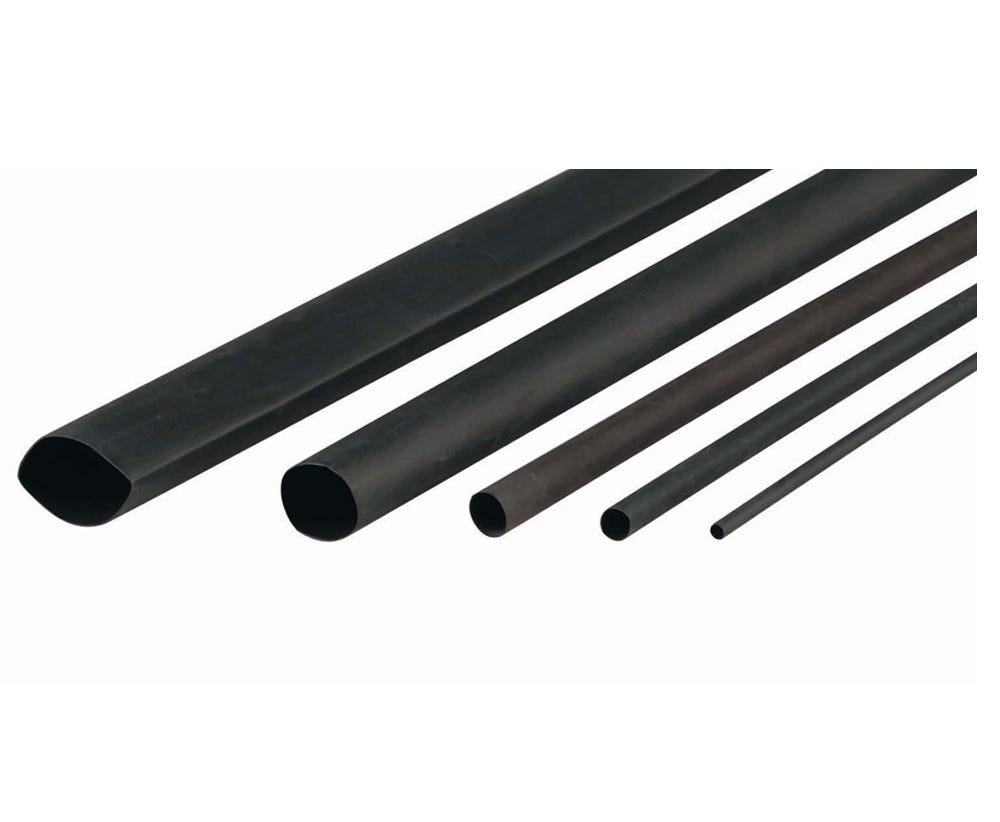

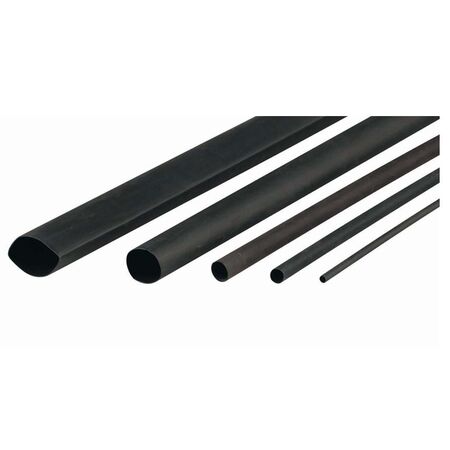

Heat Shrink Thin Wall 9.5mm Black Box of 10m Cabac
Cabac Thin Wall Heat Shrink features 9.5mm diameter, black colour, and 10m dispenser box. Ideal for insulating cable joints and terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CABAC XLP10BK-10M, Black Heat Shrink Sleeve, Polyolefin Heat Shrink Tubing, Electrical Heat Shrink
Technical Specifications
- Product Code: XLP10BK-10M
- Material: Electron beam cross-linked polyolefin
- Colour: Black
- Pre-Shrink Diameter: 9.5mm
- After-Shrink Diameter: 4.8mm
- Recovered Wall Thickness: 0.62mm
- Shrink Ratio: Approximately 2:1
- Shrinkage Temperature: Above 105°C
- Continuous Operating Temperature: -75°C to +135°C
- Voltage Rating: 600V
- Breakdown Voltage: 25kV/mm wall thickness
- Tensile Strength: 10.4MPa
- Elongation at Break: 400%
- Longitudinal Shrinkage: Less than 5%
- Flammability: UL224 VW-1
- Testing and Compliance: ASTM D2671; RoHS compliant
- Packaging: Mini dispenser box
- Tube Length: 10m
- Adhesive Lined: No
- Dimensions (H x L x W): 180mm x 167mm x 50mm
- Weight: 0.22 kg
Key Features
- Flame-retardant thin wall construction
- Provides electrical insulation and mechanical protection
- Resistant to common fluids, solvents and abrasion
- UV stabilised for improved outdoor durability
- Flexible polyolefin tubing suitable for cable joints and terminations
- Shrinks to approximately 4.8mm recovered diameter
- Supplied in a compact 10m dispenser box
- Suitable for colour coding and cable identification
Applications
- Insulating cable joints and terminations
- Protecting wire splices and electrical connections
- Cable bundling and strain relief
- Electrical repair and maintenance work
- Conductor colour coding and identification
- Control panel, switchboard and general wiring applications
Standards & Compliance
- AS/NZS 3000:2018 may apply to the installation of heat shrink tubing on fixed electrical wiring; confirm suitability for the specific installation
- Product performance is specified to UL224 VW-1 and ASTM D2671 rather than an Australian/New Zealand product standard
Environmental Benefits
- RoHS-compliant material helps minimise the use of restricted hazardous substances
- UV resistance and abrasion protection can extend the service life of cable insulation and reduce replacement waste
- Durable cross-linked polyolefin construction supports longer-lasting electrical repairs
- Polyolefin material may be recyclable subject to local recycling facilities and contamination requirements
Warranty Information
CABAC general warranty: 12 months from date of purchase where no product-specific warranty is stated, subject to correct use, installation and proof of purchase. Australian Consumer Law rights also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; live stock and delivery timing should be confirmed with the supplying distributor.
