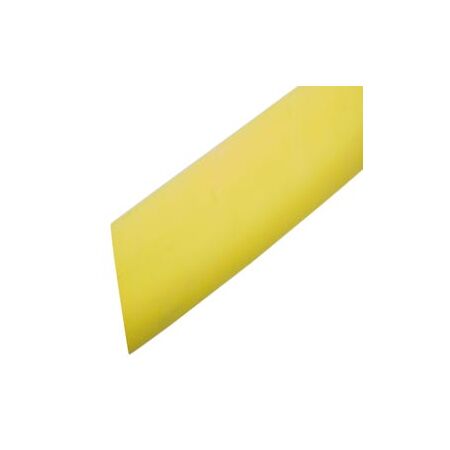

Heat Shrink Tubing 102mm Shrinks to 50.8mm | Flame Retardant & UV Resistant | Flexible by Cabac
The Cabac 102mm Thin Wall Yellow Heat Shrink Tubing provides flame retardant, flexible, and UV resistant insulation and protection for electrical conductors, shrinking to 50.8mm for tight fitting and environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 102mm Thin Wall Shrinks to 50.8mm Yellow
Brand: Cabac
SKU: XLP102Y
Alternatively Known As: Heat Shrink Sleeving, Heat Shrink Tubing, Electrical Insulation Tubing, Polyolefin Heat Shrink
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 102mm
- After-shrink diameter: 50.8mm
- Recovered wall thickness: 1.35mm
- Length: 1 metre
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 102mm x 1000mm x 102mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter for tight fitting
- Resistant to common fluids and solvents
- UV stabilised except clear variants
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 102mm Thin Wall Yellow Heat Shrink Tubing is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
