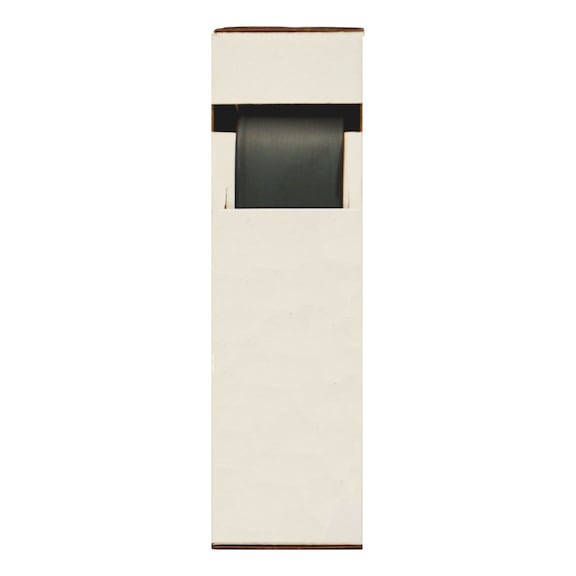

Heat Shrink Tubing | 3:1 Shrink Ratio | Flame-Retardant Polyolefin | High Dielectric Strength | by Wurth
Heat shrink tubing with a 3:1 shrink ratio and flame-retardant polyolefin material is perfect for electrical insulation and protection of wiring. Operating in a temperature range from -55 to 125 °C, it offers high dielectric strength of 15 kV/mm, making it ideal for various electrical applications. This durable tubing ensures reliable performance and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Colour: Black
- Diameter before shrink: 24 mm
- Diameter after shrink: 8 mm
- Sleeve-wall thickness when shrunk: 1.00 mm
- Dielectric strength: 15 kV/mm
- Minimum shrinkage temperature: 70 °C
- Maximum shrinkage temperature: 120 °C
- Operating temperature range: -55 to 125 °C
- Material: Polyolefin
- Flame-retardant: Yes
- Length: 3 m
- Dimensions (H x L x W): 3mm x 3000mm x 24mm
- Weight: 0.1 kg
Key Features
- 3:1 shrink ratio for versatile application
- Flame-retardant polyolefin material
- High dielectric strength of 15 kV/mm
- Operates in temperature range from -55 to 125 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper application and safety compliance.
Applications
- Electrical insulation and protection of wiring and connections
- Cable bundling and strain relief in electrical installations
- Protection against abrasion, moisture, and environmental factors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Flame-retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Wurth 3:1 Shrink Ratio Polyolefin Heat Shrink Sleeve is available for immediate purchase, ideal for electrical insulation and protection applications.
