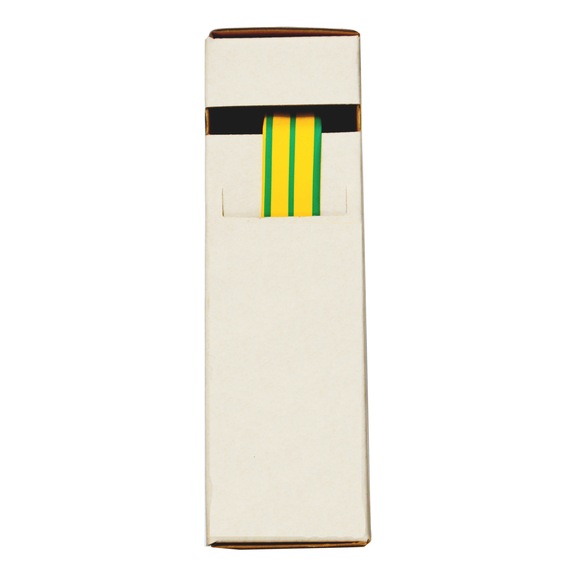

Heat Shrink Tubing | Polyolefin Material | Flame-Retardant | 15 kV/mm Dielectric Strength | by Wurth
Heat shrink tubing made from durable polyolefin material is perfect for electrical insulation and protection in various applications. With a high dielectric strength of 15 kV/mm and a shrinkage temperature range of 70 to 120 °C, this tubing is ideal for automotive and industrial use. Available in green and yellow, it ensures safety and compliance in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Tubing | Polyolefin Material | Flame-Retardant | 15 kV/mm Dielectric Strength | by Wurth
Brand: Wurth
SKU: 7715127
Alternatively Known As: Heat Shrink Tubing, Heat Shrink Sleeve, Electrical Insulation Sleeve, Polyolefin Shrink Tube
Technical Specifications
- Material: Polyolefin
- Colour: Green, Yellow
- Diameter: 12.7 mm
- Diameter (shrunk): 6.4 mm
- Sleeve-wall thickness when shrunk: 0.75 mm
- Dielectric strength: 15 kV/mm
- Min./max. shrinkage temperature: 70 to 120 °C
- Min./max. temperature conditions: -55 to 125 °C
- Length: 5 m
- Flame-retardant: Yes
- Dimensions (H x L x W): 172mm x 163mm x 50mm
- Weight: 0.1 kg
Key Features
- Flame-retardant polyolefin material
- High dielectric strength of 15 kV/mm
- Shrinkage temperature range from 70 to 120 °C
- Operating temperature range from -55 to 125 °C
- Available in green and yellow colors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper application and safety compliance.
Applications
- Electrical insulation for wiring and connections
- Protection of cables in automotive and industrial applications
- General electrical installation and maintenance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Flame-retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Polyolefin Heat Shrink Sleeve is available for immediate purchase, ideal for electrical insulation and protection in residential, commercial, and industrial applications.
