Heat Transfer Kit 1 Room Inline Fan Controller White Ventair

BRAND: Ventair
SKU: VHTK1
$522.50 List price: $696.70
+ −
30 Days Return Electricians Unlock Trade Access

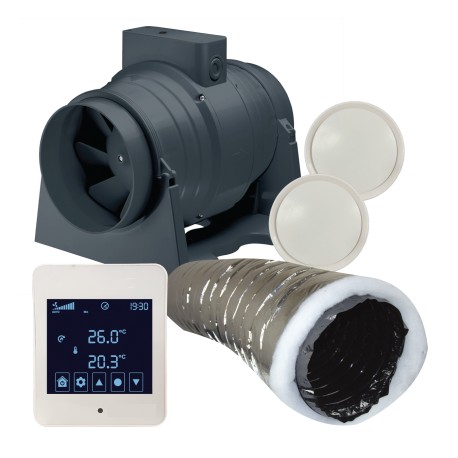

Ventair 1-room heat transfer kit with mixflow inline fan, digital touch screen controller, insulated duct and adjustable inlet/outlet vents. White.

Alternatively Known As: Ventair HeatTrans 1 Room Kit, FAN0325, VHTK1, Room-to-Room Heat Transfer Kit

Technical Specifications
  • Model: MRHT1
  • Product Code: FAN0325
  • Fan Type: High-performance EC inline axial fan
  • Air Delivery: 380 m³/h
  • Airflow: 105 L/s
  • Motor Power: 18 W
  • Input Power: 220–240 V AC, 50 Hz
  • Duct Diameter: 150 mm
  • Ducting Included: 3 m acoustic insulated R0.6 duct and 3 m insulated R0.6 duct
  • Maximum Recommended Duct Length: Up to 12 m total
  • Controller: Digital touch-screen thermostat, model FAN7194
  • Controller Temperature Range: Adjustable from 5–35°C
  • Inlet Grille: 220 mm fascia with 200 mm cut-out
  • Outlet Diffuser: 266 mm fascia with 232 mm cut-out
  • Ingress Protection: IP44 for the EC inline fan
  • Packaging Dimensions: 500 x 600 x 260 mm
  • Shipping Weight: 6.7 kg
  • Dimensions (H x L x W): 260mm x 600mm x 500mm
  • Weight: 6.7 kg
Key Features
  • Transfers excess heat from a primary living area to one other room
  • Can circulate cooler air throughout the home during summer
  • High-efficiency 18 W EC inline fan
  • Automated digital touch-screen thermostat controller
  • R0.6 acoustic insulated ducting helps retain heat and reduce airflow noise
  • Includes adjustable outlet diffuser and round inlet grille
  • Supplied with duct tape, hanging straps, brackets, cut-out template and installation instructions
  • White vents and controller suit residential interiors
Professional Installation Requirements
  • Installation must be performed by a qualified and licensed electrician. Electrical connection and fixed wiring should comply with AS/NZS 3000, and the system should be installed in accordance with the manufacturer's instructions.
Applications
  • Residential room-to-room heat transfer
  • Redistributing heat from living rooms, lounges or heat-source areas
  • Reducing temperature differences between living areas and bedrooms
  • Summer air circulation between rooms
  • Residential ventilation and comfort improvement
Standards & Compliance
  • AS/NZS 60335.2.80:2025, applicable to the safety of electric fans including duct fans and associated controls
  • AS/NZS 3000, applicable to the electrical installation and fixed wiring of the system
Environmental Benefits
  • Recirculates existing household heat, which can reduce reliance on additional space heating
  • Low-power 18 W EC motor supports efficient air movement
  • R0.6 insulated ducting helps reduce heat loss during transfer
  • Can circulate cooler air in summer without adding refrigerant or combustion emissions
  • Durable replaceable components can help extend system service life and reduce replacement waste
Warranty Information

5-year warranty for the MRHT1 heat transfer kit when installed in Australia or New Zealand in accordance with Ventair requirements. Controller coverage may be subject to separate accessory warranty terms. Commercial installations are subject to Ventair's one-year warranty limitation.

Available Now

Available through authorised Ventair distributors in Australia.
