Heat Transfer Kit 2 Room Inline Fan Branch Take Off White Ventair

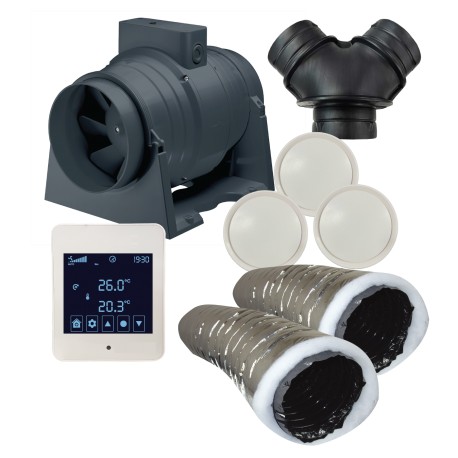

Ventair 2-room heat transfer kit with mixflow inline fan, touch screen controller, insulated duct, adjustable vents and branch take off. White.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair 2 Room Heat Transfer System, Heat Transfer Fan Kit, Two Room Inline Heat Transfer Kit
Technical Specifications
- Model: VHTK2
- System Type: Two-room heat transfer system
- Motor Type: AC ball bearing motor
- Motor Power: 40W low speed, 50W high speed
- Air Delivery: 438m³/h low speed, 561m³/h high speed
- Noise Level: 39dB(A) low speed, 47dB(A) high speed
- Power Supply: 220–240V AC, 50Hz
- Duct Size: 150mm diameter
- Insulated Ducting: 2 x 6m lengths, R0.6 insulation
- Fan Protection: IPX4
- Minimum Installation Depth: 280mm
- Included Components: Touchscreen controller, mixflow inline fan, three adjustable vents, Y connector, duct tape and cable ties
- Dimensions (H x L x W): 600mm x 600mm x 340mm
- Weight: 8.4 kg
Key Features
- Transfers excess heat from warmer areas to two other rooms
- Can circulate cooler air throughout the home during summer
- High-performance mixflow inline fan with two speed settings
- Integrated energy-saving backdraft shutter
- Digital touchscreen controller included
- Includes two 6m lengths of insulated 150mm duct
- Three adjustable 150mm inlet or outlet vents included
- White vent finish suitable for residential interiors
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician. Electrical connection and installation should comply with the supplied instructions and applicable Australian electrical and mechanical ventilation requirements.
Applications
- Redistributing heat from living areas to bedrooms or other rooms
- Improving temperature balance in residential homes
- Circulating cooler air between rooms during warmer weather
- Supporting reduced condensation, mould and mildew in suitable installations
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, for electrical installation work
- AS 1668.2:2024 The use of ventilation and airconditioning in buildings, Part 2: Mechanical ventilation in buildings, where applicable to the installation
Environmental Benefits
- Recirculates existing warm air, which may reduce reliance on additional room heating
- Can improve household heating efficiency by redistributing excess heat
- R0.6 insulated ducting helps reduce heat loss during air transfer
- Backdraft shutter helps limit unwanted air leakage when the fan is not operating
- Long-life ball bearing motor can reduce replacement frequency and associated waste
Warranty Information
Covered by a 5-year Ventair manufacturer warranty against manufacturing defects, subject to the product warranty terms and correct installation requirements.
Available Now
Available through authorised Ventair distributors in Australia.
