Heat Transfer Kit 3 Room Inline Fan Branch Take Off White Ventair

BRAND: Ventair
SKU: VHTK3
$811.30 List price: $1,081.70
+ −
30 Days Return Electricians Unlock Trade Access
Ventair 3-room heat transfer kit with mixflow inline fan, touch screen controller, insulated duct, adjustable vents and branch take off. White.

Alternatively Known As: Ventair VHTK3 Heat Transfer System, Three Room Warm Air Transfer Kit, Multi-Room Heat Transfer Fan Kit

Technical Specifications
  • Model: VHTK3
  • System Type: Three-room heat transfer system
  • Motor Type: AC ball-bearing motor
  • Motor Power: 105 W low speed; 130 W high speed
  • Air Delivery: 753 m³/h low speed; 852 m³/h high speed
  • Noise Level: 45 dB(A) low speed; 53 dB(A) high speed
  • Power Supply: 220–240 V AC, 50 Hz
  • Fan Duct Size: 200 mm diameter
  • Inlet Vent: 200 mm duct; 320 mm fascia; 288 mm cut-out
  • Outlet Vents: 150 mm duct; 260 mm fascia; 225 mm cut-out
  • Controller: 3.5-inch digital LCD touchscreen
  • Controller Temperature Range: 5–35°C adjustable
  • Ingress Protection: IPX4
  • Duct Insulation: R0.6 insulated flexible duct
  • Minimum Installation Depth: 300 mm

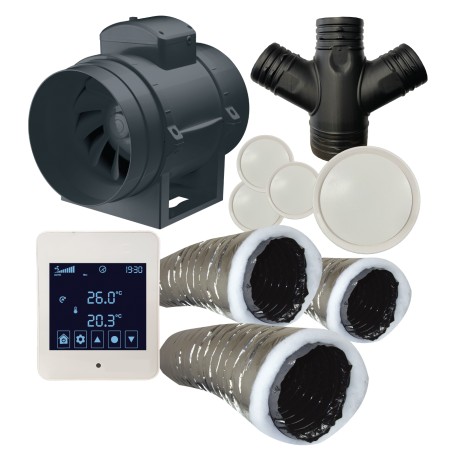

  • Kit Contents: Mixflow inline fan, touchscreen controller, 200 mm inlet vent, three 150 mm outlet vents, 200 mm to three-way 150 mm branch take-off, 18 m insulated duct, duct tape and cable ties
  • Colour: White vents and diffusers
  • Dimensions (H x L x W): 600mm x 600mm x 340mm
  • Weight: 13 kg
Key Features
  • Transfers excess heat from a source room to up to three other rooms
  • Can circulate cooler air throughout the home during summer
  • Digital touchscreen controller with temperature sensing and scheduled operation
  • Integrated energy-saving backdraft shutter
  • Two fan speed settings for adjustable air movement
  • R0.6 insulated ducting helps retain transferred heat and reduce air leakage
  • Adjustable inlet and outlet vents allow airflow balancing
  • Long-life ball-bearing motor
  • Double branch take-off distributes air from the 200 mm inlet duct to three 150 mm outlets
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local building regulations. Where the source room contains a gas heater, wood fire or other flued appliance, a licensed professional must assess the installation to prevent combustion-gas back-spillage. Do not install diffusers in bathrooms, kitchens or laundries.
Applications
  • Distributing excess warmth from living rooms or heat-source rooms to bedrooms and adjoining rooms
  • Balancing temperatures across residential homes
  • Recirculating warm air during winter
  • Circulating cooler air between rooms during summer
  • Reducing heat build-up in the main living area
Standards & Compliance
  • AS/NZS 3000:2018 Electrical installations for electrical wiring and installation work
  • AS 1668.2:2012 Mechanical ventilation in buildings where applicable to the ventilation design and building application
  • AS/NZS 5601.1 where installation is associated with a gas appliance or flued heating appliance
Environmental Benefits
  • Redistributes existing heat rather than generating additional heat, helping reduce reliance on supplementary heating
  • Insulated R0.6 ducting helps reduce heat losses during air transfer
  • Can improve utilisation of existing household heating by circulating otherwise unused warm air
  • Durable ball-bearing motor and replaceable components can help extend service life and reduce waste
Warranty Information

Five-year residential warranty from the date of purchase, comprising two years of in-home parts and labour coverage followed by three years of parts-only replacement coverage. Commercial and non-residential installations may have different warranty conditions.

Available Now

Available through authorised Ventair distributors in Australia.
