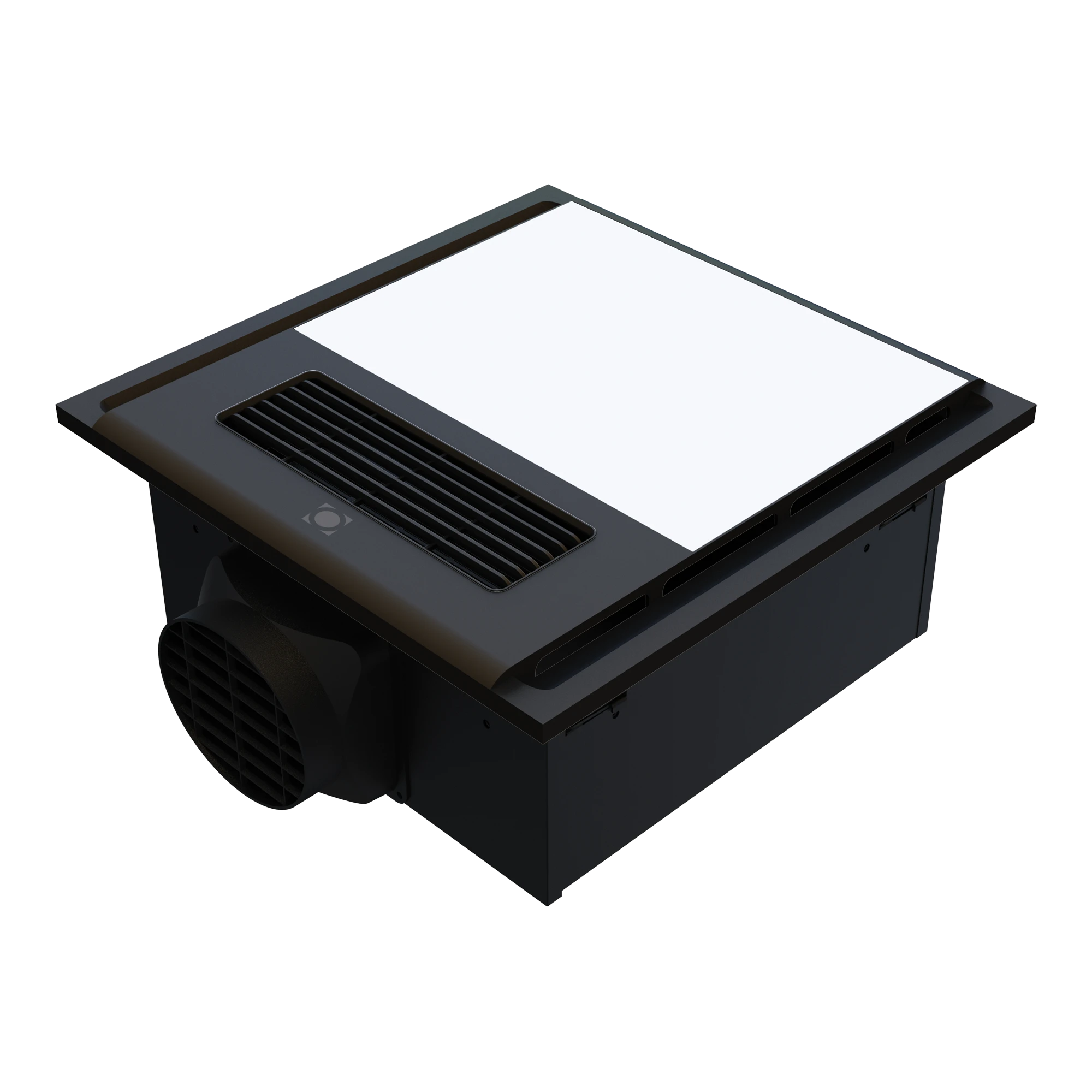

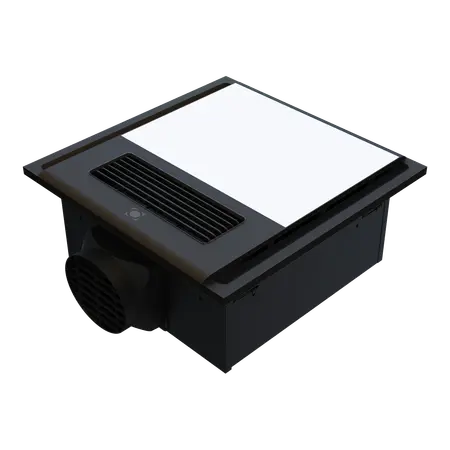

Heatcore 4-in-1 Retrofit Bathroom Heater Fan & Light Black Domus
Domus Heatcore 4-in-1 retrofit bathroom heater with heat, exhaust fan and light, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: BH-HEATCORE, Domus Heatcore PTC Bathroom Heater, 4-in-1 Bathroom Heat Fan Light, Variant 56025
Technical Specifications
- Model: BH-HEATCORE
- Variant: 56025, black finish
- Input Voltage: 240V AC
- Total Power: 2250W
- Heating Output: 2150W
- Heating Type: PTC heating element
- Motor Power: 60W AC
- Air Extraction: 300m³/h
- Light: 12W LED, tri-colour switchable
- Colour Temperature: 3000K, 4000K or 5000K
- Lumen Output: 850lm at 3000K, 950lm at 4000K, 900lm at 5000K
- CRI: ≥80
- Noise Level: ≤46dB
- IP Rating: IPX2
- Duct Size: 100mm
- Cut-out Size: 330–350mm x 330–350mm, with 200mm cavity depth
- Included Accessories: 6-switch digital wall controller, 3m flexible duct, exterior grille
- Automatic Safety Shut-off: Two hours
- Design Registration: 202614158 ([domuslighting.com.au](https://www.domuslighting.com.au/product/heatcore-bathroom-heater/))
- Dimensions (H x L x W): 158mm x 390mm x 390mm
- Weight: 4 kg
Key Features
- Four functions in one ceiling-mounted unit: heating, extraction, air circulation and lighting
- Black fascia suitable for bathroom retrofit installations
- PTC heating element provides 2150W heating output
- 300m³/h extraction capacity with included 3m flexible duct and exterior grille
- Tri-colour LED light with selectable 3000K, 4000K and 5000K colour temperatures
- Digital wall controller with individual function controls and all-off operation
- Two-hour automatic shut-off safety feature

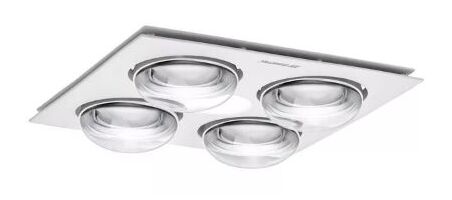

- Designed to cover most existing two- and four-heat infrared heater cut-outs
- Suitable for use with existing five-core wiring in compatible retrofit installations
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with the installation manual and applicable Australian wiring requirements. Installation requires a mains circuit with an automatic circuit breaker rated at not less than 10A. The 100mm ducting must be installed for correct extraction performance. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/08/BH-HEATCORE-Installation-Manual.pdf))
Applications
- Residential bathroom heating and ventilation
- Bathroom renovations and retrofit replacement of existing two- or four-heat infrared units
- Ceiling-mounted heating, exhaust and lighting installations in domestic bathrooms
- Apartment and townhouse bathroom refurbishment projects
Standards & Compliance
- AS/NZS 3000: Electrical installations and wiring requirements for fixed electrical equipment
- AS/NZS 60335.2.30: Particular safety requirements for household and similar room heaters
- IEC 60335-2-80: Applicable safety requirements for fan and extraction functions where relevant; the product is IPX2 rated and must be installed in a suitable bathroom location. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-us/standards/as-nzs-60335-2-30-2015-111035_saig_as_as_232287/?utm_source=openai))
Environmental Benefits
- Tri-colour LED lighting provides an efficient alternative to conventional bathroom heat-lamp lighting
- PTC heating and automatic two-hour shut-off can help limit unnecessary energy use during operation
- Retrofit-compatible fascia can reduce the need for major ceiling alterations and associated building waste
- Replaceable or serviceable components and a long manufacturer warranty may extend product service life and reduce replacement waste
Warranty Information
Domus lists ceiling fans, exhaust fans and bathroom heaters under a six-year warranty: three years in-home warranty followed by three years parts-replacement warranty for both residential and commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation guidelines. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
