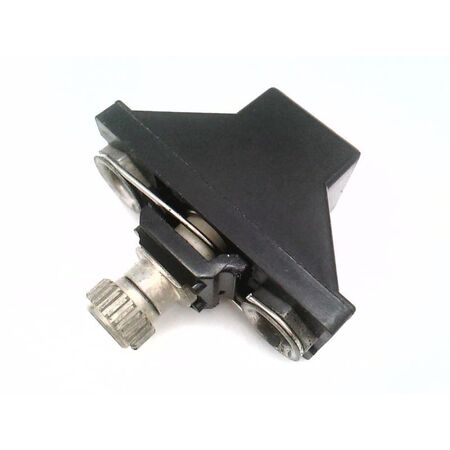

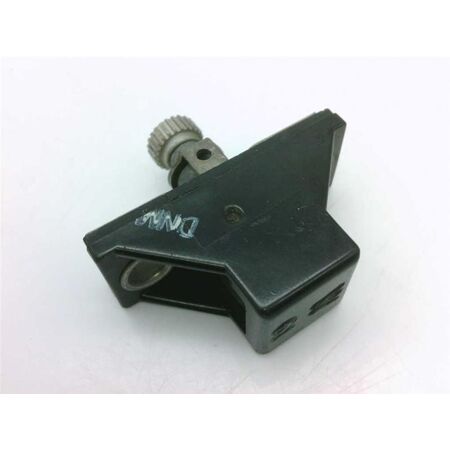

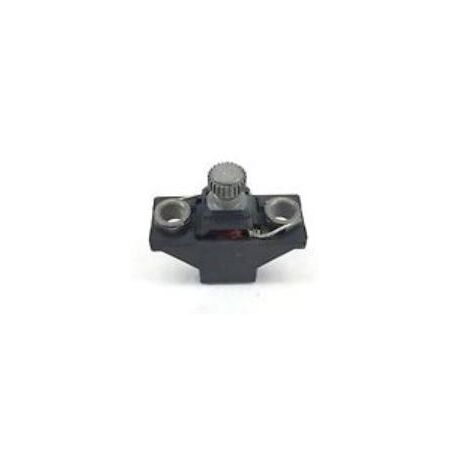

Heater Element for W Series Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The Heater Element for W Series Overload Relay is designed with a eutectic alloy for reliable performance in industrial motor protection. Compatible with Bulletin 500 line starters and offering Class 20 protection, it ensures optimal safety and efficiency in electrical control panels and automation systems. Ideal for qualified electricians, this heater element enhances motor longevity and reduces energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Compatibility: Bulletin 500 line starters
- Class Protection: Class 20
- Current Ratings: 22.2A (Size 00-0), 22.9A (Size 1), 23.2A (Size 2), 25.1A (Size 3)
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection
- Rated current: 22.2A to 25.1A depending on size
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems requiring overload relay heating elements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to prevent energy waste from motor damage
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W61 Heater Element is available for immediate purchase, ideal for industrial and automation motor protection applications.
