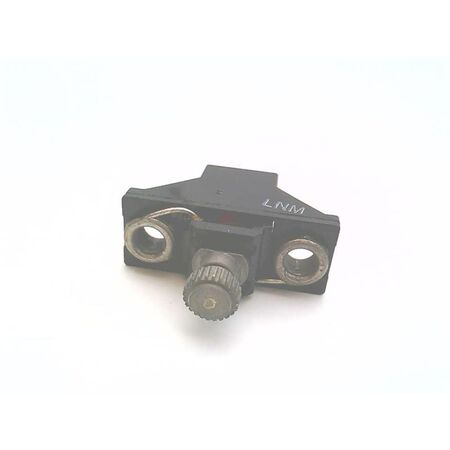

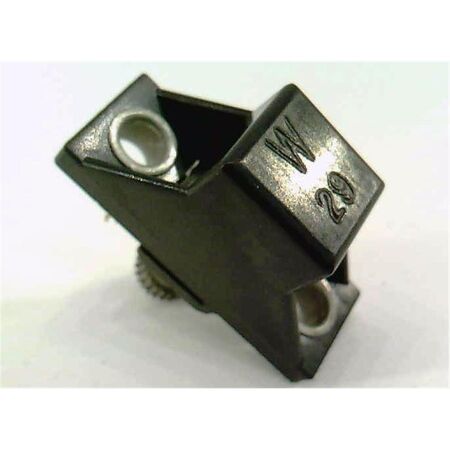

Heater Element W29 for W Series Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W29 Heater Element is designed for W Series overload relays, featuring a eutectic alloy construction and Class 20 protection. Ideal for industrial motor protection and overload relay systems, it ensures reliable performance with current ratings of 1.22 AMP at size 00-0 and 1.16 AMP at size 1. Perfect for use with Bulletin 500 line starters, this heater element enhances motor efficiency and prevents overload damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Series: W Series
- Protection Class: 20
- Current Rating: 1.22 AMP at size 00-0, 1.16 AMP at size 1
- Compatible with Bulletin 500 line starters
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with W Series and Bulletin 500 line starters
- Class 20 protection
- Current ratings: 1.22 AMP at size 00-0, 1.16 AMP at size 1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems and compliance with electrical standards.
Applications
- Industrial motor protection
- Overload relay systems
- Bulletin 500 line starters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W29 Heater Element is available for immediate purchase, ideal for industrial motor protection and overload relay applications.
