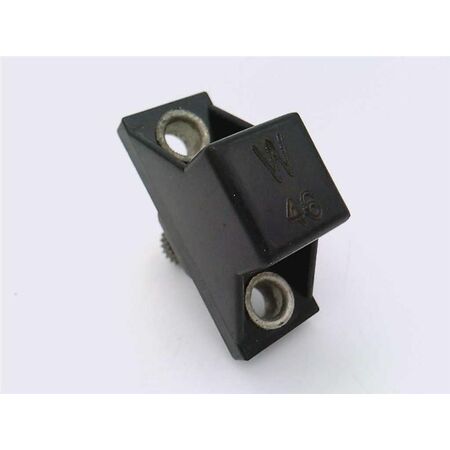

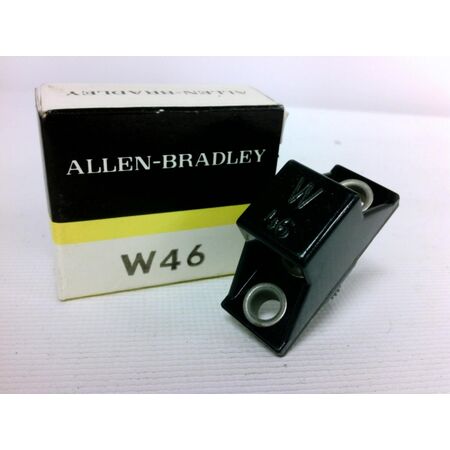

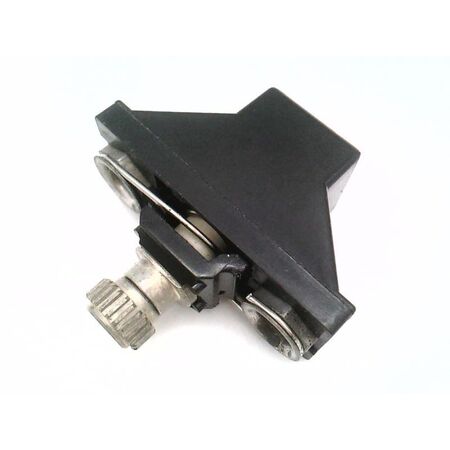

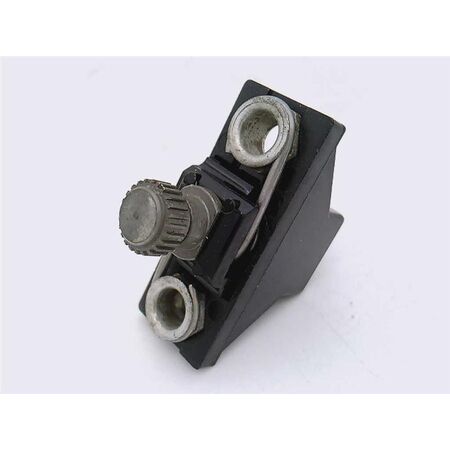

Heater Element W46 for W Series Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W46 Heater Element is designed for W Series Overload Relays, featuring a eutectic alloy construction and Class 20 protection rating. Ideal for industrial motor control systems, it ensures reliable overload protection and enhances motor efficiency, making it perfect for automation and manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection rating
- Current rating: 5.82 Amp at Size 00-0
- Current rating: 5.68 Amp at Size 1
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection
- Current ratings: 5.82 Amp @ Size 00-0, 5.68 Amp @ Size 1
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and overload relay systems.
Applications
- Industrial motor control systems
- Overload protection in electrical starters
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment downtime.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley W46 Heater Element is available for immediate purchase, ideal for industrial motor protection and control applications.
