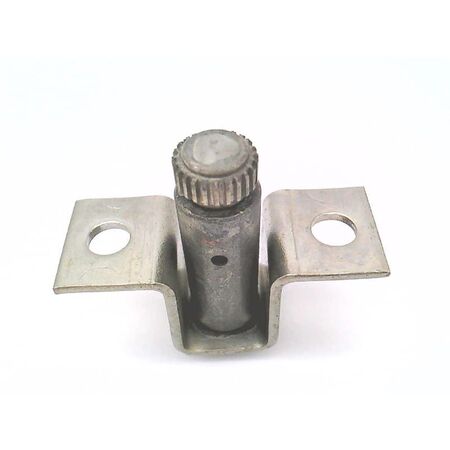

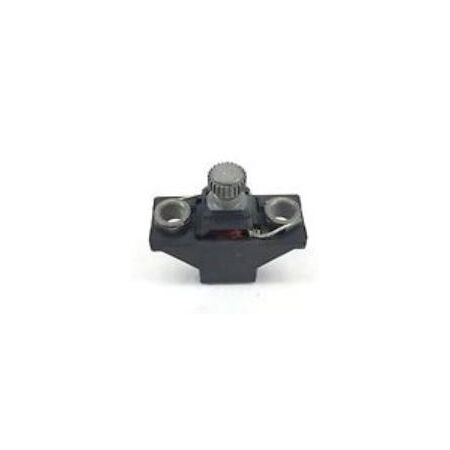

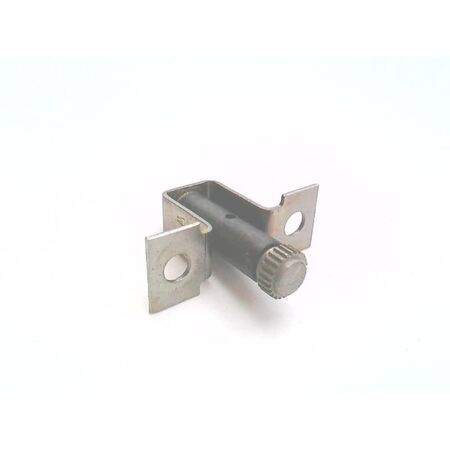

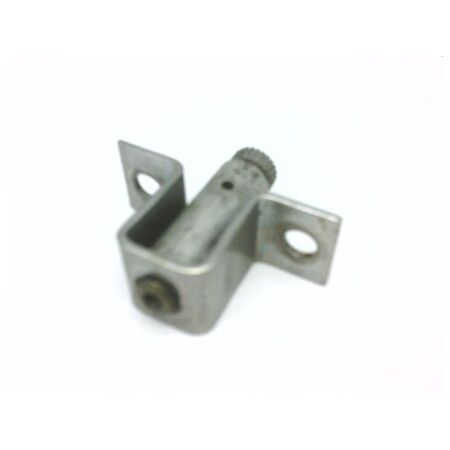

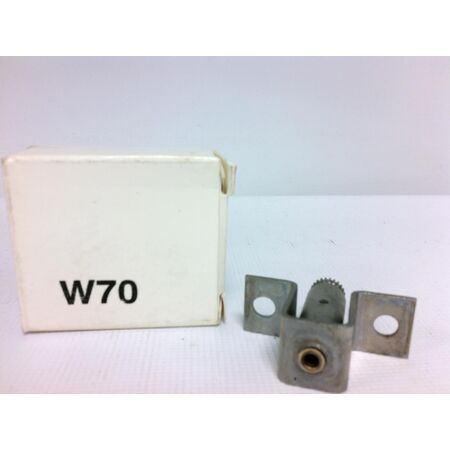

Heater Element W70 for W Series Overload Relay | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The W70 Heater Element is designed for W Series Overload Relays, featuring a eutectic alloy construction and Class 20 protection rating. Perfect for industrial motor protection and electrical control panels, it supports current ratings of 48.5 AMP at Size 2, 58.0 AMP at Size 3, and 61.0 AMP at Size 4, ensuring reliable overload protection in automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection rating
- Current ratings: 48.5 AMP @ Size 2, 58.0 AMP @ Size 3, 61.0 AMP @ Size 4
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Eutectic alloy type overload relay heater element
- Compatible with Bulletin 500 line starters
- Class 20 protection
- Supports 48.5 AMP at Size 2, 58.0 AMP at Size 3, and 61.0 AMP at Size 4
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and overload relay systems.
Applications
- Industrial motor protection
- Electrical control panels
- Automation systems requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor efficiency by preventing overload damage, reducing energy waste and equipment replacement.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W70 Heater Element is available now for immediate purchase. Ideal for industrial and commercial motor protection applications.
