Heatshrink Boot 4 Way 55-21mm | Waterproof & UV Resistant | High Tensile Strength by Cabac
The Cabac KEV Heatshrink Boot/Glove 4 Way 55-21mm/20-5.5mm provides a durable and effective solution for sealing and waterproofing cable terminations with high resistance to environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Glove 4 Way 55-21mm/20-5.5mm
Brand: Cabac
SKU: KEV430
Alternatively Known As: Heatshrink Boot, Heatshrink Glove, Cable Termination Boot, Waterproof Cable Sleeve
Technical Specifications
- Material: Modified cross-linked polyolefin
- Continuous Operating Temperature: -40°C to +110°C
- Minimum Full Recovery Temperature: 120°C
- Tensile Strength: 14 MPa
- Ultimate Elongation: 600%
- Dielectric Strength: 17 kV/mm
- Volume Resistance: 3.0 x 10^14 Ω.cm
- Water Absorption: 0.3%
- Flammability: Not suitable for flame prone areas
- Conformant Standards: ASTM & IEC
- Dimensions (H x L x W): 21mm x 100mm x 55mm
- Weight: 0.05 kg
Key Features
- Quick and simple installation to seal and waterproof a termination
- High resistance to tearing and high tensile strength
- Resistant to UV, decay, chemicals and corrosion
Professional Installation Requirements

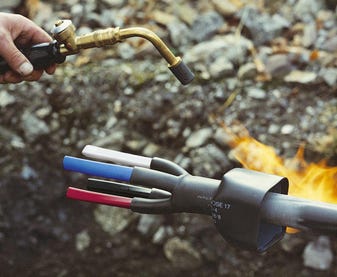

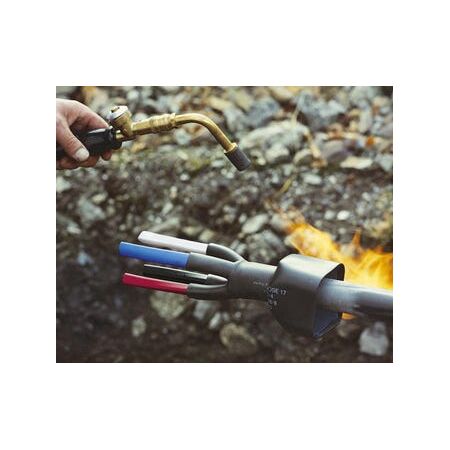

- Installation requires cleaning and roughening cable insulation; heat shrinking must be done carefully with a heat gun or soft yellow gas flame to avoid overheating.
Applications
- Sealing and waterproofing cable terminations
- Electrical insulation protection in industrial and commercial wiring
- Protection of insulated conductors to cable jackets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Extends the lifespan of electrical cables by protecting against environmental damage
- Reduces waste by preventing cable failure and the need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac KEV Heatshrink Boot/Glove 4 Way 55-21mm/20-5.5mm is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable termination sealing.
