Heatshrink Dual Wall Glue Tube | 3:1 Shrink Ratio | Flexible & Flame Retarded | 1.2M by Cabac

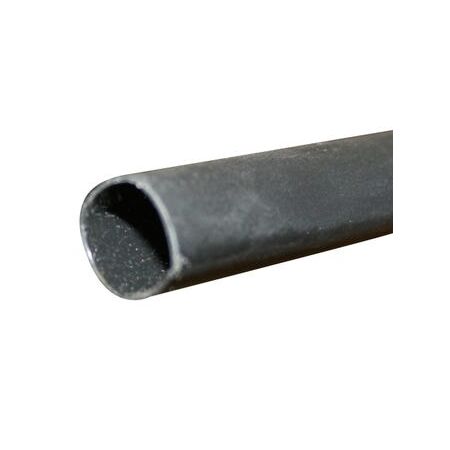

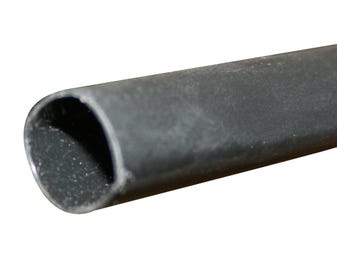

Cabac Heatshrink Dual Wall Glue L 50-19 1.2M is a thin-walled, flexible, flame-retarded polyolefin heatshrink tube with a glue-lined inner surface, ideal for electrical and mechanical protection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Dual Wall Glue L 50-19 1.2M
Brand: Cabac
SKU: XDW51BK
Alternatively Known As: Dual Wall Heat Shrink Tubing, Glue Lined Heatshrink Tube, Flexible Heatshrink Sleeve, Polyolefin Heatshrink Tube
Technical Specifications
- Material: Dual wall, flexible, flame retarded polyolefin with modified polyamide adhesive sealant
- Continuous operating temperature: -55°C to +110°C
- Shrinkage temperature: Starts at 90°C, completed at 125°C
- Tensile strength: 10.5 MPa
- Elongation at break point: 200%
- Longitudinal shrinkage: 15%
- Breakdown voltage: 20 kV/mm wall thickness
- Volume resistivity: 1.0 x 10^14 ohm cm
- Water absorption: 0.5%
- Flammability: All tubing flame test passed
- UV resistance: Passed ISO 1408
- Voltage rating: 600 V
- Dimensions (H x L x W): 10mm x 1200mm x 50mm
- Weight: 0.1 kg
Key Features
- Highly flexible
- Very high shrink ratio 3:1
- Flame retarded
- Good mechanical adhesion
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper application and safety.
Applications
- Electrical insulation repair and strain relief on cords
- Mechanical protection for brake and fuel pipes in automotive industry
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant material enhances safety and reduces fire risk
- Durable and long-lasting, reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy.
Available Now
The Cabac Heatshrink Dual Wall Glue L 50-19 1.2M is available now for immediate purchase. Ideal for electrical insulation and mechanical protection applications.
