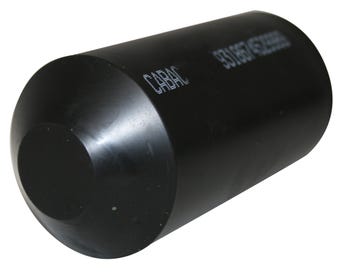

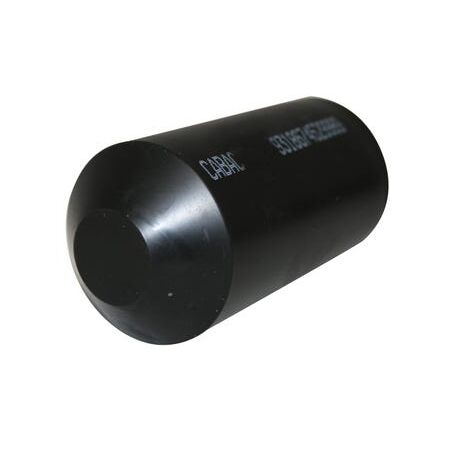

Heatshrink End Cap 100-52MM | Watertight Seal | UV Resistant & Durable by Cabac
The Cabac Heatshrink End Cap 100-52MM Unlined provides a durable and watertight seal for cable ends during installation or storage, made from cross-linked polyolefin with excellent resistance to UV rays and chemicals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink End CAP 100-52MM Unlined
Brand: Cabac
SKU: SRE5U
Alternatively Known As: Heat Shrink End Cap, Cable End Seal, Heat Shrink Cable Cap, Heatshrink Cable End Cover
Technical Specifications
- Material: Cross-linked polyolefin with thermoplastic sealant
- Continuous Operating Temperature: -35°C to +110°C
- Shrinkage Temperature: Starts at 105°C, completed at 135°C
- Tensile Strength: 12 MPa
- Elongation at Break Point: 500%
- Longitudinal Shrinkage: 10%
- Breakdown Voltage: 10 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohms cm
- Water Absorption: <0.15%
- Flammability: Not suitable for flame prone areas
- UV Resistance: Passed ISO 1408
- Dimensions (H x L x W): 52mm x 100mm x 100mm
- Weight: 0.05 kg
Key Features
- Quick reliable seal of cable ends
- Watertight and unlimited storage life
- Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion
Professional Installation Requirements
- Installation requires heating the end cap starting from the closed end until the glue extrudes from the edges, ensuring a secure seal. Recommended to be performed by trained personnel.
Applications
- Sealing cable ends during installation
- Protection of cable ends during storage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Protects cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink End Cap 100-52MM Unlined is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable end sealing.
