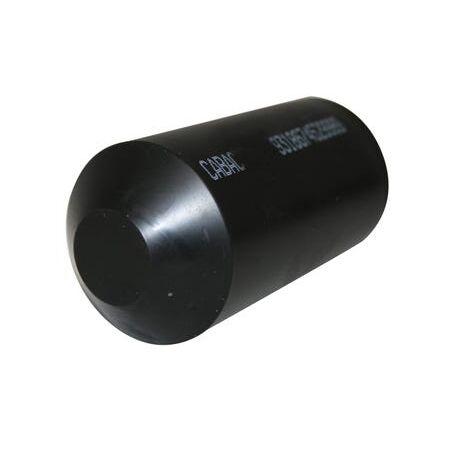

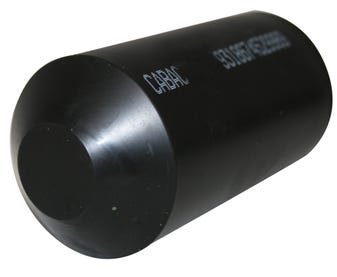

Heatshrink End Cap 20.6-7.5MM | UV Resistant | Watertight Seal | Durable Material by Cabac
The Cabac Heatshrink End Cap 20.6-7.5MM provides a quick and reliable seal for cable ends during installation or storage, made from cross-linked polyolefin with a hot melt glue liner for strong bonding and excellent resistance to UV rays, chemicals, and corrosion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink End CAP 20.6-7.5MM
Brand: Cabac
SKU: SRE2
Alternatively Known As: Heat Shrink End Cap, Heat Shrink Cable End Seal, Heatshrink Cable End Cap, Cable End Protector
Technical Specifications
- Material: Cross-linked polyolefin with thermoplastic sealant
- Continuous Operating Temperature: -35°C to +110°C
- Shrinkage Temperature: Starts at 105°C, completed at 135°C
- Tensile Strength: 12 MPa
- Elongation at Break Point: 500%
- Longitudinal Shrinkage: 10%
- Breakdown Voltage: 10 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohms cm
- Water Absorption: <0.15%
- Flammability: Not suitable for flame prone areas
- UV Resistance: Passed ISO 1408
- Dimensions (H x L x W): 21mm x 25mm x 21mm
- Weight: 0.01 kg
Key Features
- Quick reliable seal of cable ends
- Watertight and unlimited storage life
- Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper shrinkage and sealing of cable ends.
Applications
- Sealing cable ends during installation
- Protecting cable ends during storage
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Long storage life minimizes waste
- Resistant to environmental degradation, reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink End Cap 20.6-7.5MM is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable end sealing.
