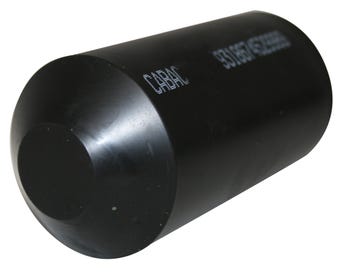

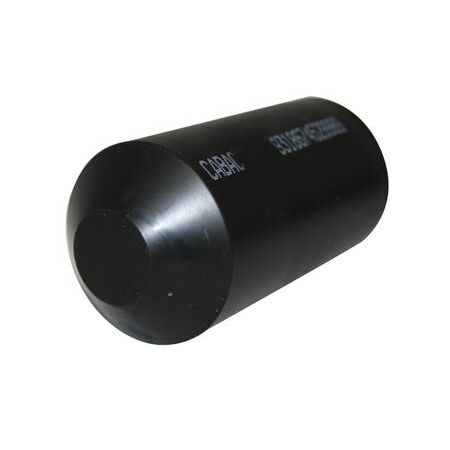

Heatshrink End Cap 35-75mm | Watertight Seal | UV Resistant & Durable by Cabac
The Cabac Heatshrink End Cap 35-75mm Unlined 180mm provides a quick, reliable, and watertight seal for cable ends during installation or storage, made from durable cross-linked polyolefin resistant to UV rays and chemicals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink End Cap 35-75mm Unlined 180mm
Brand: Cabac
SKU: SRE4U-LONG
Alternatively Known As: Heat Shrink Cable End Cap, Heat Shrink Tube End Cap, Cable End Seal, Heatshrink Cable Cap
Technical Specifications
- Material: Cross-linked polyolefin with thermoplastic sealant
- Continuous Operating Temperature: -35°C to +110°C
- Shrinkage Temperature: Starts at 105°C, completed at 135°C
- Tensile Strength: 12 MPa
- Elongation at Break Point: 500%
- Longitudinal Shrinkage: 10%
- Breakdown Voltage: 10 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohms cm
- Water Absorption: <0.15%
- Flammability: Not suitable for flame prone areas
- UV Resistance: Passed ISO 1408
- Dimensions (H x L x W): 35mm x 180mm x 75mm
- Weight: 0.05 kg
Key Features
- Quick reliable seal of cable ends
- Watertight and unlimited storage life
- Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper shrinkage and sealing of cable ends.
Applications
- Sealing cable ends during installation
- Protecting cable ends during storage
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Protects cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink End Cap 35-75mm Unlined 180mm is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable end sealing.
