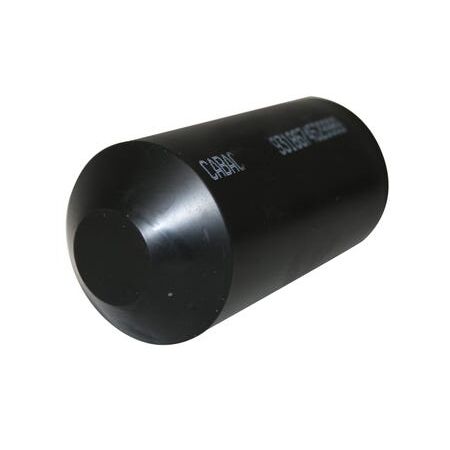

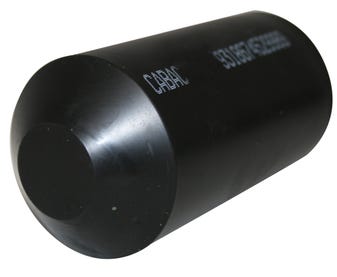

Heatshrink End Cap 55-25MM | Watertight Seal | UV Resistant by Cabac
Heatshrink end cap with watertight seal and UV resistance—ideal for sealing and protecting cable ends during installation or storage. Built for durability, with cross-linked polyolefin material and hot melt glue liner.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink End CAP 55-25MM
Brand: Cabac
SKU: SRE4
Alternatively Known As: Heat Shrink End Cap, Cable End Seal, Heat Shrink Cable Cap, Heat Shrink Tube End Cap
Technical Specifications
- Material: Cross-linked polyolefin with thermoplastic sealant
- Continuous Operating Temperature: -35°C to +110°C
- Shrinkage Temperature: Starts at 105°C, completed at 135°C
- Tensile Strength: 12 MPa
- Elongation at Break Point: 500%
- Longitudinal Shrinkage: 10%
- Breakdown Voltage: 10 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohms cm
- Water Absorption: <0.15%
- Flammability: Not suitable for flame prone areas
- UV Resistance: Passed ISO 1408
- Dimensions (H x L x W): 25mm x 55mm x 55mm
- Weight: 0.1 kg
Key Features
- Quick reliable seal of cable ends
- Watertight and unlimited storage life
- Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion
Professional Installation Requirements
- Installation requires heating the end cap starting from the closed end until the glue extrudes from the edges, ensuring a secure seal. Recommended to be performed by trained personnel.
Applications
- Sealing cable ends during installation
- Protecting cable ends during storage
- Electrical and power connectivity applications requiring cable end protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- Protects cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Heatshrink End Cap 55-25MM is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring durable cable end sealing.
