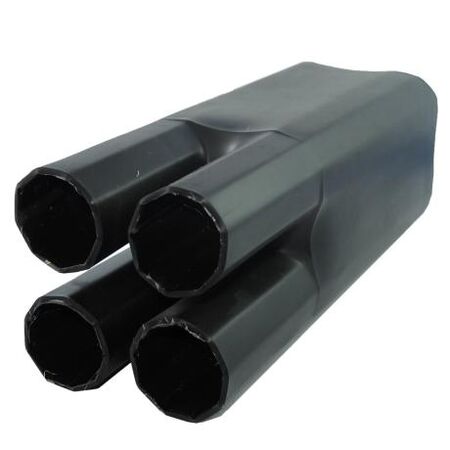

Heatshrink Glove 4 Way 1KV Body | Dual Wall Construction | 4:1 Shrink Ratio | by Wattmaster
The Heatshrink Glove 4 Way 1KV Body is designed for efficient electrical cable terminations, featuring a dual wall construction and a 4:1 body shrink ratio. Ideal for PVC, XLPE, and PILC cables, it offers high tensile strength and excellent UV, chemical, and corrosion resistance, ensuring reliable protection and insulation for cable cores and jackets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Glove 4 Way 1KV Body | Dual Wall Construction | 4:1 Shrink Ratio | by Wattmaster
Brand: Wattmaster
SKU: HSGL4W-80/30
Alternatively Known As: Heat Shrink Glove, Heatshrink Cable Glove, Cable Termination Heatshrink, Dual Wall Heatshrink Glove
Technical Specifications
- Voltage rating: 1KV
- Body shrink ratio: 4:1
- Dual wall construction with heat-activated adhesive
- Finger shrink ratio: 3:1
- Suitable for PVC, XLPE, and PILC cables
- High tensile strength and tear resistance
- UV, chemical, and corrosion resistant
- Dimensions (H x L x W): 42mm x 30mm x 80mm
- Weight: 0.1 kg
Key Features
- Provides quick and simple installation of terminations
- Seals cable cores and jacket effectively
- High tearing resistance and tensile strength
- Excellent UV, chemical, and corrosion resistance
- Dual wall construction for enhanced protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper shrinking and sealing without local overheating.
Applications
- Electrical cable terminations and joints
- Protection and insulation of cable cores and jackets
- Suitable for use with PVC, XLPE, and PILC cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Chemical and UV resistance extends product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Heatshrink Glove 4 Way 1KV Body Dual Wall 80/42 Finger 30/11 is available for immediate purchase, ideal for electrical cable termination and protection applications.
