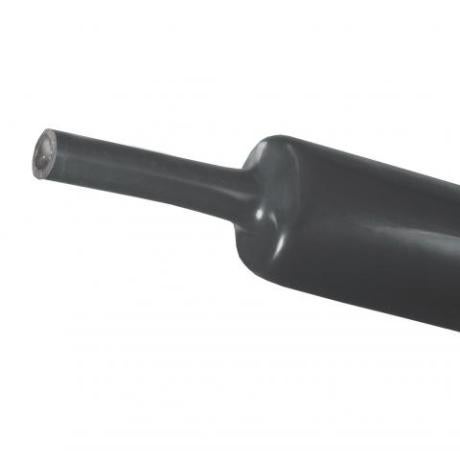

Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | UV Resistant & Waterproof | 1.2m Black | by Wattmaster
Heatshrink Medium Dual Wall Glue Lined is perfect for electrical insulation and cable protection, featuring a 3:1 shrink ratio and UV resistance. Made from Ethylene Vinyl Acetate, this 1.2m black tubing ensures waterproof sealing and mechanical strength, making it ideal for cable termination, splicing, and bundling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | UV Resistant & Waterproof | 1.2m Black | by Wattmaster
Brand: Wattmaster
SKU: HSMWGL10/3L
Alternatively Known As: Heat shrink tubing, dual wall heat shrink, glue lined heat shrink, waterproof heat shrink tubing, cable insulation tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 3:1
- Size Range: 10.7mm to 2.8mm after shrink
- Length: 1.2 meters
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Elongation at Break: 580%
- Flame Retardant: Yes
- UV Resistant: Yes
- Glue Lined: Yes for waterproof sealing
- Dimensions (H x L x W): 10.7mm x 1200mm x 10.7mm
- Weight: 0.1 kg
Key Features
- Medium dual wall heatshrink with glue lining for waterproof sealing
- 3:1 shrink ratio for versatile fitting
- Made from Ethylene Vinyl Acetate for flexibility and UV resistance
- Low shrink temperature and flame retardant
- Glue lined for greater mechanical strength
- Radial shrinking ratio greater than 50%
- Longitudinal shrinking ratio of 10%
- Elongation at break of 580%
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper heatshrink application and electrical safety.
Applications
- Electrical insulation
- Cable termination and splicing
- Cable bundling and protection
- Strain relief for cables
- Waterproof cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistant properties extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Medium Dual Wall Glue Lined 3:1 Ratio 10.7-2.8mm Black is available for immediate purchase, ideal for electrical insulation and cable protection applications.
