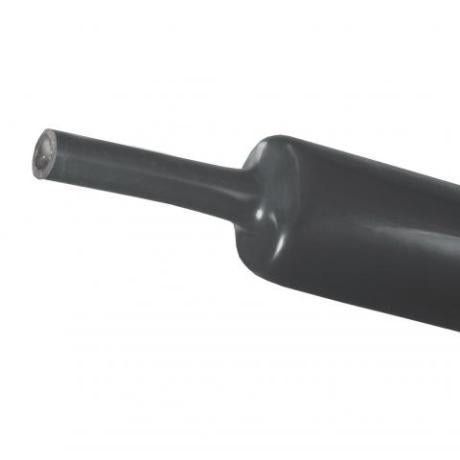

Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof Sealing | Black | @Each by Wattmaster
Heatshrink Medium Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. With a 3:1 shrink ratio and made from Ethylene Vinyl Acetate, it offers flexibility and UV resistance. Ideal for waterproofing applications, this tubing ensures reliable cable joints and terminations, making it a must-have for professionals in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof Sealing | Black | @Each by Wattmaster
Brand: Wattmaster
SKU: HSMWGL35/12L
Alternatively Known As: Heat shrink tubing, dual wall heat shrink, glue lined heatshrink, waterproof heatshrink tubing, cable insulation tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 3:1
- Size Range: 35.8mm to 11.5mm diameter
- Length: 1.2 meters
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Elongation at Break: 580%
- Flame Retardant: Yes
- UV Resistant: Yes
- Glue Lined: Yes for waterproof sealing
- Dimensions (H x L x W): 15mm x 1200mm x 36mm
- Weight: 0.1 kg
Key Features
- Medium dual wall heatshrink with glue lining for waterproof sealing
- 3:1 shrink ratio for versatile cable fitting
- Made from Ethylene Vinyl Acetate for flexibility and UV resistance
- Low shrink temperature and flame retardant
- Glue lined for enhanced mechanical strength and waterproofing
- Radial shrinking ratio greater than 50%
- Longitudinal shrinking ratio of 10%
- High elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper heatshrink application and electrical safety.
Applications
- Electrical insulation
- Cable termination and splicing
- Cable bundling and protection
- Strain relief for cables
- Waterproof cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable protection reduces cable replacement waste
- Flame retardant properties improve safety and reduce fire risk
- UV resistance extends product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Medium Dual Wall Glue Lined 3:1 Ratio 35.8-11.5mm Black is available for immediate purchase. Ideal for electrical insulation, cable protection, and waterproofing applications.
