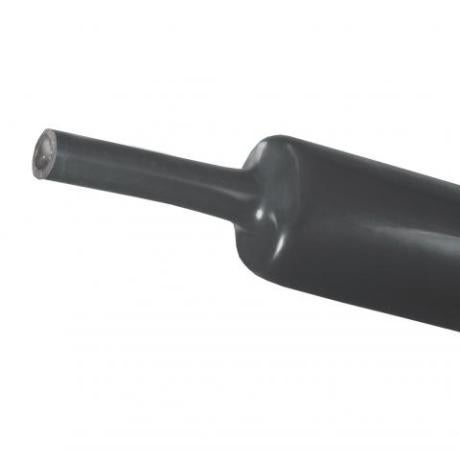

Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof & UV Resistant | 1.2m Black | by Wattmaster
Heatshrink Medium Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. With a 3:1 shrink ratio and waterproof sealing, it ensures enhanced mechanical strength and durability. Ideal for professionals, this flexible and UV resistant tubing is designed for reliable cable terminations and splicing, making it a must-have for any electrical project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof & UV Resistant | 1.2m Black | by Wattmaster
Brand: Wattmaster
SKU: HSMWGL25/8L
Alternatively Known As: Heatshrink tubing, dual wall heatshrink, glue lined heatshrink, waterproof heatshrink tubing, cable insulation tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 3:1
- Size Range: 25.1mm to 8mm after shrinking
- Length: 1.2 meters
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Elongation at Break: 580%
- Flame Retardant: Yes
- UV Resistant: Yes
- Glue Lined: Yes, for waterproof sealing
- Dimensions (H x L x W): 8mm x 1200mm x 25mm
- Weight: 0.1 kg
Key Features
- Medium dual wall heatshrink with glue lining for enhanced mechanical strength
- Material: Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Glue lined and waterproof
- Shrink temperature above 110°C
- Radial shrinking ratio greater than 50%
- Longitudinal shrinking ratio of 10%
- High elongation at break of 580%
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and compliance with electrical safety standards.
Applications
- Electrical insulation
- Termination and splicing of cables
- Bundling and cable protection
- Strain relief for cables
- Waterproof cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Provides waterproof sealing to prevent environmental damage to cables
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Medium Dual Wall Glue Lined 3:1 Ratio 25.1-8mm Black is available for immediate purchase, ideal for electrical insulation and cable protection applications.
