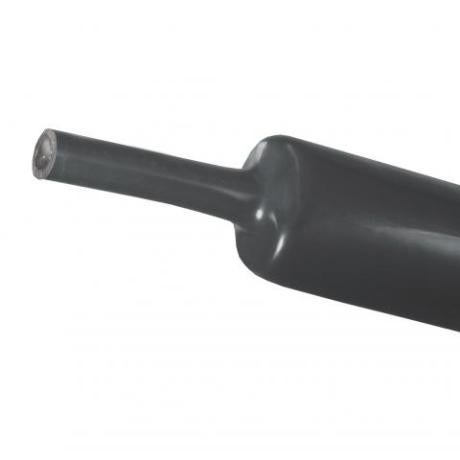

Heatshrink Medium Dual Wall Glue-Lined 3:1 50/16mm Waterproof UV-Resistant (Black Wattmaster) Connected Switchgear
Heatshrink Medium Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection, featuring a 3:1 shrink ratio and waterproof sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 3:1
- Size Range: 51.4mm to 15.8mm diameter
- Length: 1.2 meters
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Elongation at Break: 580%
- Flame Retardant and UV Resistant
- Glue Lined for Waterproofing and Mechanical Strength
- Dimensions (H x L x W): 15mm x 1200mm x 51mm
- Weight: 0.1 kg
Key Features
- Medium dual wall heatshrink with glue lining for waterproof sealing
- 3:1 shrink ratio for versatile cable fitting
- Made from Ethylene Vinyl Acetate for flexibility and UV resistance
- Low shrink temperature and flame retardant
- Glue lined for enhanced mechanical strength and waterproofing
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper heatshrink application and electrical safety.
Applications
- Electrical insulation
- Cable termination and splicing
- Cable bundling and protection
- Strain relief for cables
- Waterproof cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistant properties extend product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Medium Dual Wall Glue Lined 3:1 Ratio 51.4-15.8mm Black is available for immediate purchase, ideal for electrical insulation and cable protection in industrial and residential applications.
