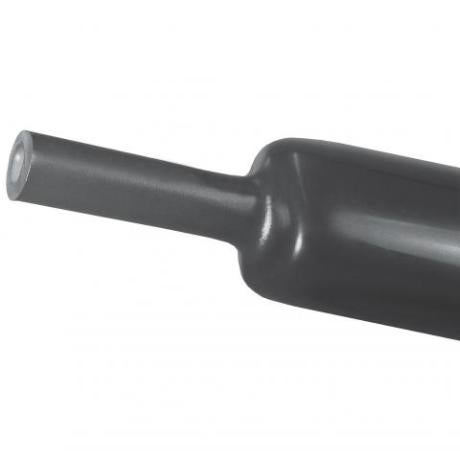

Heatshrink Thick Dual Wall Glue Lined | 30.1-8.8mm | UV Resistant & Flame Retardant | @Each by Wattmaster
Heatshrink Thick Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection, featuring a radial shrink ratio greater than 50% and a high dielectric strength of ≥20 kV/mm. Made from durable Ethylene Vinyl Acetate, this black tubing is UV resistant and flame retardant, ensuring long-lasting performance in various applications. Ideal for professionals seeking reliable strain relief and waterproofing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | 30.1-8.8mm | UV Resistant & Flame Retardant | @Each by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL28/9
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heatshrink, Glue Lined Heatshrink, Waterproof Heatshrink Tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrink Ratio: > 50%
- Longitudinal Shrink Ratio: 10%
- Dielectric Strength: ≥20 kV/mm (IEC243)
- Elongation at Break: 580%
- UV Resistant
- Flame Retardant
- Dimensions (H x L x W): 30mm x 1200mm x 30mm
- Weight: 0.1 kg
Key Features
- Thick dual wall heatshrink with glue lining for waterproofing and mechanical strength
- Made from Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Shrink temperature above 110°C
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- High dielectric strength ≥20 kV/mm
- High elongation at break of 580%
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper application and safety.
Applications
- Electrical insulation
- Termination and splicing of cables
- Bundling and cable protection
- Strain relief for wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Thick Dual Wall Glue Lined 30.1-8.8mm Black 1.2m is available for immediate purchase, ideal for electrical insulation and cable protection applications.
