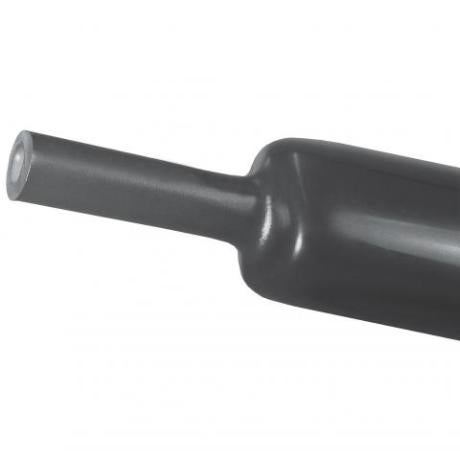

Heatshrink Thick Dual Wall Glue Lined | 68.2-21.4mm | Waterproof & UV Resistant | by Wattmaster
Heatshrink Thick Dual Wall Glue Lined is perfect for electrical insulation and cable protection, featuring a radial shrinking ratio greater than 50% and a shrink temperature above 110°C. Designed for heavy-duty use, this flexible and flame-retardant tubing ensures enhanced mechanical strength and durability, making it ideal for both industrial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | 68.2-21.4mm | Waterproof & UV Resistant | by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL68/22
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heatshrink, Glue Lined Heatshrink, Waterproof Heatshrink Tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Dielectric Strength: ≥20 kV/mm (IEC243)
- Elongation at Break: 580%
- UV Resistant
- Flame Retardant
- Glue Lined and Waterproof
- Dimensions (H x L x W): 21mm x 1200mm x 68mm
- Weight: 0.1 kg
Key Features
- Heatshrink suitable for heavy duty and general purpose use
- Material: Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Glue lined and waterproof for enhanced mechanical strength
- Shrink temperature above 110°C
- Radial shrinking ratio greater than 50%
- Longitudinal shrinking ratio of 10%
- High dielectric strength (≥20 kV/mm to IEC243)
- High elongation at break (580%)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety compliance.
Applications
- Electrical insulation
- Termination and splicing of cables
- Bundling and cable protection
- Strain relief for electrical wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Thick Dual Wall Glue Lined 68.2-21.4mm 1.2m Black is available now for immediate purchase. Ideal for electrical insulation and cable protection in industrial and residential applications.
