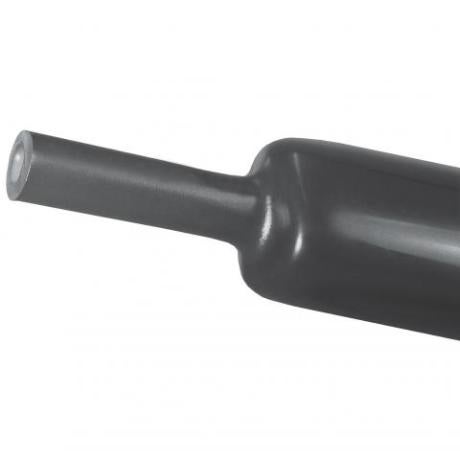

Heatshrink Thick Dual Wall Glue Lined | 90.4-29.3mm | UV Resistant & Waterproof | by Wattmaster
Heatshrink Thick Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection, featuring a shrink temperature above 110°C and a radial shrink ratio greater than 50%. Made from durable Ethylene Vinyl Acetate, this black tubing is flexible, flame retardant, and ideal for heavy-duty applications, ensuring long-lasting performance in both industrial and residential settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | 90.4-29.3mm | UV Resistant & Waterproof | by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL90/30
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heatshrink, Glue Lined Heatshrink, Heavy Duty Heatshrink Sleeve
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrink Ratio: > 50%
- Longitudinal Shrink Ratio: 10%
- Dielectric Strength: ≥ 20 kV/mm (IEC243)
- Elongation at Break: 580%
- Length: 1.2 meters
- Colour: Black
- Dimensions (H x L x W): 90mm x 1200mm x 90mm
- Weight: 0.15 kg
Key Features
- Thick dual wall heatshrink tubing with glue lining
- Material: Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Glue lined and waterproof for enhanced mechanical strength
- Shrink temperature above 110°C
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- High dielectric strength ≥ 20 kV/mm to IEC243
- High elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper application and compliance with electrical safety standards.
Applications
- Electrical insulation
- Termination and splicing of cables
- Cable bundling and protection
- Strain relief for heavy duty and general purpose use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life in outdoor applications
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty terms for details.
Available Now
Wattmaster Heatshrink Thick Dual Wall Glue Lined 90.4-29.3mm 1.2m Black is available for immediate purchase, ideal for electrical insulation and cable protection in industrial and residential applications.
