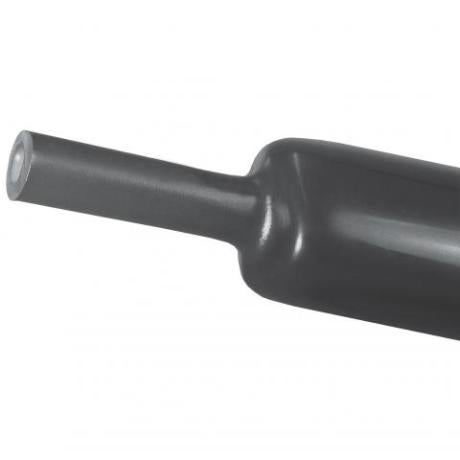

Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | 38.2-11.6mm | @Each by Wattmaster
Heatshrink Thick Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. Made from flexible Ethylene Vinyl Acetate, it features a waterproof seal and UV resistance, ensuring durability in outdoor applications. With a shrink temperature above 110°C and a radial shrink ratio greater than 50%, this tubing is ideal for qualified electricians looking for reliable strain relief and cable management solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | 38.2-11.6mm | @Each by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL38/12
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heatshrink, Glue Lined Heatshrink, Waterproof Heatshrink Tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrink Ratio: > 50%
- Longitudinal Shrink Ratio: 10%
- Dielectric Strength: ≥ 20 kV/mm (IEC243)
- Elongation at Break: 580%
- Flame Retardant
- Flexible and UV Resistant
- Dimensions (H x L x W): 38mm x 1200mm x 38mm
- Weight: 0.1 kg
Key Features
- Thick dual wall heatshrink with glue lining for waterproof sealing
- Made from Ethylene Vinyl Acetate for flexibility and UV resistance
- Low shrink temperature and flame retardant
- High mechanical strength due to glue lining
- Shrink temperature above 110°C
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- Dielectric strength ≥ 20 kV/mm according to IEC243
- Elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper application and safety compliance.
Applications
- Electrical insulation
- Termination and splicing of cables
- Bundling and cable protection
- Strain relief for electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistant properties extend product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Heatshrink Thick Dual Wall Glue Lined 38.2-11.6mm 1.2m Black is available for immediate purchase, ideal for electrical insulation and cable protection applications.
