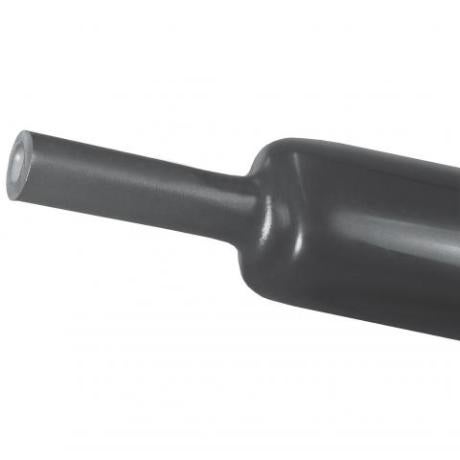

Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | High Dielectric Strength | @Each by Wattmaster
Heatshrink Thick Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. Made from Ethylene Vinyl Acetate, it features a waterproof design and high dielectric strength of ≥ 20 kV/mm, making it ideal for various applications including cable bundling and strain relief. With a low shrink temperature above 110°C and flame retardant properties, this tubing ensures safety and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | High Dielectric Strength | @Each by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL130/36
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heat Shrink Sleeve, Glue Lined Heatshrink, Waterproof Heatshrink Tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrink Ratio: > 50%
- Longitudinal Shrink Ratio: 10%
- Dielectric Strength: ≥ 20 kV/mm (IEC243)
- Elongation at Break: 580%
- UV Resistant
- Flame Retardant
- Dimensions (H x L x W): 35mm x 1200mm x 35mm
- Weight: 0.1 kg
Key Features
- Thick dual wall heatshrink with glue lining for waterproofing and mechanical strength
- Made from Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Shrink temperature above 110°C
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- High dielectric strength ≥ 20 kV/mm
- High elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper application and compliance with electrical safety standards.
Applications
- Electrical insulation
- Termination and splicing of cables
- Cable bundling and protection
- Strain relief for wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for details.
Available Now
Wattmaster Heatshrink Thick Dual Wall Glue Lined 138-35.7mm 1.2m Black is available for immediate purchase, ideal for electrical insulation and cable protection applications.
