Heatshrink Thick Wall Glue L 180-50 | 1.5M Length | 4:1 Shrink Ratio | UV Resistant by Cabac

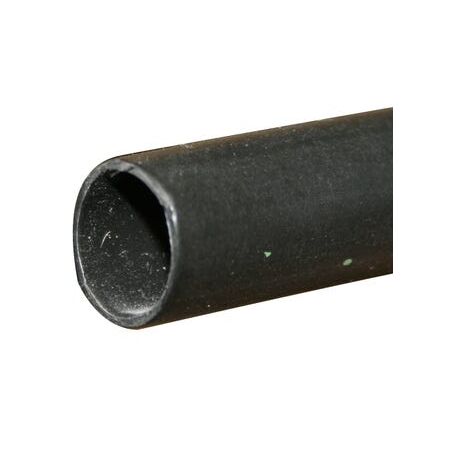

Cabac Thickwall Glue Lined Heatshrink 180-50MM x 1.5M is a cross-linked polyolefin tube designed for waterproof jointing and sealing cable terminations, offering UV resistance and operating temperatures from -55°C to +110°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Wall Glue L 180-50 1.5M
Brand: Cabac
SKU: STDW180/50PA
Alternatively Known As: Thick Wall Heat Shrink Tubing, Glue Lined Heatshrink Tube, Waterproof Heatshrink Sleeve, Cable Repair Heatshrink, Polyolefin Heatshrink Tubing
Technical Specifications
- Material: Cross-linked Polyolefin
- Continuous Operating Temperature: -55°C to 110°C
- Shrinkage Temperature: 130°C
- Tensile Strength: > 12 N/mm²
- Elongation: > 400%
- Longitudinal Shrinkage: < 10%
- Dielectric Strength: > 15 KV/mm
- Volume Resistivity: > 1 x 10^12 ohm cm
- Flammability: Not self extinguishing
- Thermal Shock: No damage
- Dimensions (H x L x W): 50mm x 1500mm x 50mm
- Weight: 0.1 kg
Key Features
- Voltage rating: 0.6/1kV (Low Voltage)
- High shrink ratio of 4:1 covering a wide range
- Thicker wall than SMDW for better insulation and protection
- Greater rigidity with higher abrasion and impact strength
- Hand-applied polyamide adhesive with superior sealing capabilities
Professional Installation Requirements
- Professional installation recommended to ensure proper surface preparation and uniform heating for effective sealing and insulation.
Applications
- Cable joints
- Cable repairs
- Cable terminations in critical areas requiring waterproof sealing and insulation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- Resistant to common fluids and abrasion, minimizing environmental waste
- UV resistant for extended outdoor use, reducing material degradation
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thick Wall Glue L 180-50 1.5M is available now for immediate purchase. Ideal for electrical cable jointing, repairs, and waterproof sealing applications.
