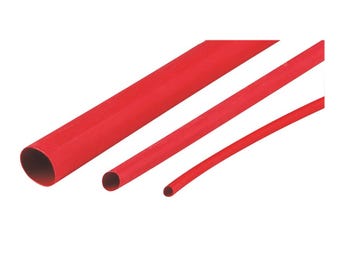

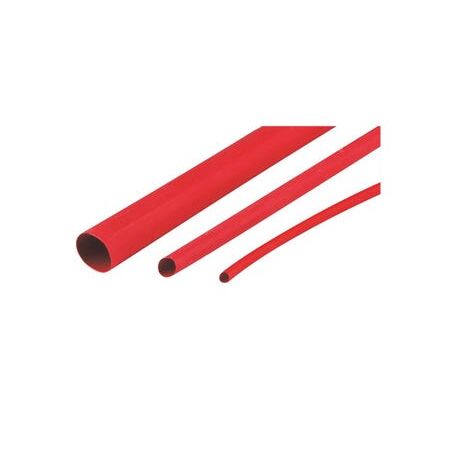

Heatshrink Thin Wall 1.6MM | Flame Retardant & Flexible | Red by Cabac
Heatshrink thin wall tubing with 1.6MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and resistance to abrasion, impact, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Red
Brand: Cabac
SKU: XLP1.5RD
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Operating Temperature Range: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- UV resistant except clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against common fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste
- UV resistance extends product life, reducing replacement frequency
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; refer to Cabac standard product warranty terms.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Red is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
