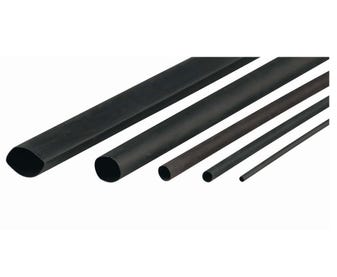

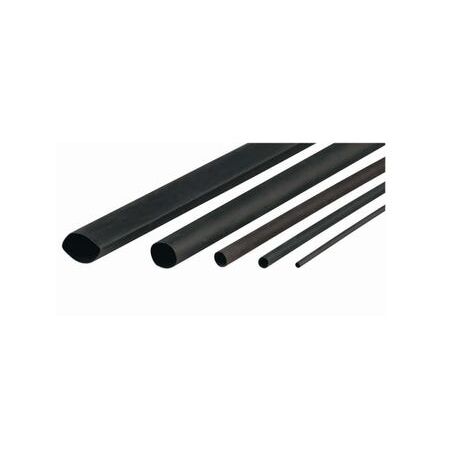

Heatshrink Thin Wall 1.6MM | Flame Retardant | UV Resistant | Black by Cabac
Heatshrink thin wall tubing with 1.6MM diameter, flame retardant and UV resistant—ideal for electrical insulation and protection. Built for durability, with flexible polyolefin material and resistance to abrasion and solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Black
Brand: Cabac
SKU: XLP1.5BK
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink, Electrical Heat Shrink Sleeve, Heat Shrink Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter for tight fitting
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation recommended using appropriate heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces waste and replacement frequency
- UV resistance extends product life in outdoor applications
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty details are subject to supplier terms; typically covered against manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Black is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
