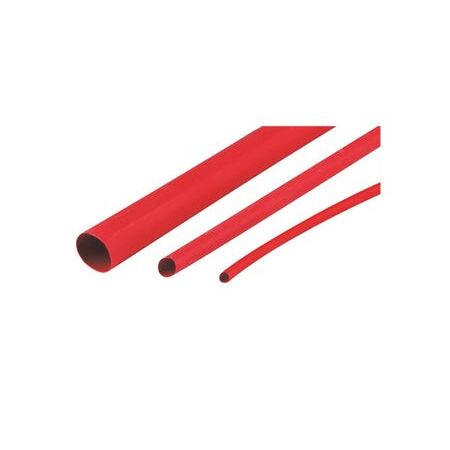

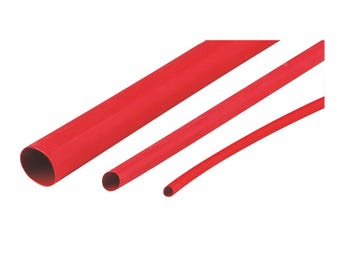

Heatshrink Thin Wall 12.7MM | Flame Retardant & Flexible | 5M Red by Cabac
Heatshrink thin wall tubing with 12.7mm pre-shrink diameter and flame retardant properties—ideal for electrical insulation and protection. Built for harsh environments, with flexibility and resistance to fluids, solvents, and abrasion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 12.7MM Red 5M Box
Brand: Cabac
SKU: XLP13RD-5M
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink, Electrical Insulation Tubing, Heat Shrink Sleeve, Red Heatshrink Tube
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 5 meters
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 127mm x 5000mm x 127mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Flexible and resistant to impact and abrasion
- UV stabilised except clear variants
- Shrinks to approximately 50% of pre-shrink diameter
- Made from Electron Beam Cross Linked Polyolefin
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper heat shrinking and electrical safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection against abrasion and impact
- Environmental protection against fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilisation extends product life in outdoor applications
- Protects electrical components, reducing waste from damage
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 12.7MM Red 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
