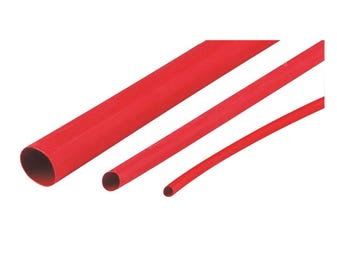

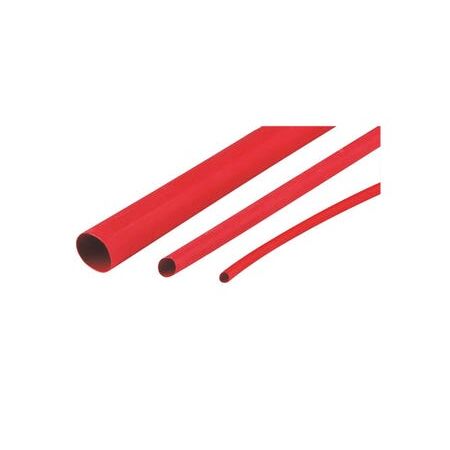

Heatshrink Thin Wall 19MM | Flame Retardant | 5M Red by Cabac
Heatshrink tubing with 19MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with resistance to abrasion, solvents, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Red 5M Box
Brand: Cabac
SKU: XLP20RD-5M
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink, Electrical Insulation Tubing, Red Heatshrink Sleeve
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 5 meters
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 19mm x 5000mm x 19mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces waste and replacement frequency
- UV stabilization extends product life, reducing environmental impact
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 19MM Red 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
