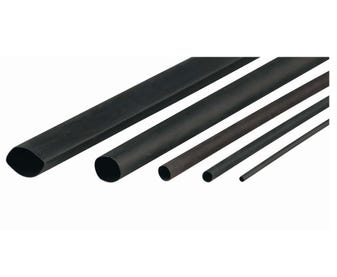

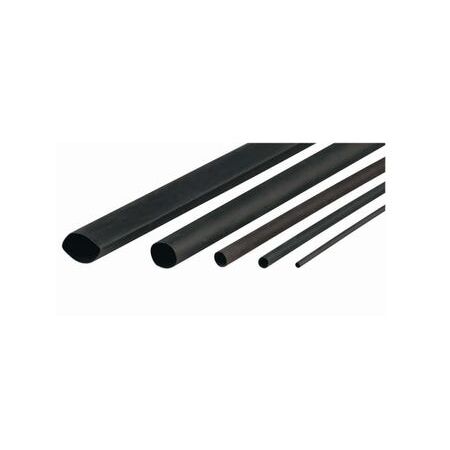

Heatshrink Thin Wall 19MM | Flame Retardant & Flexible | Black by Cabac
Heatshrink thin wall tubing with 19MM diameter, flame retardant and flexible—ideal for electrical insulation and protection. Built for industrial, commercial, and residential use, with resistance to fluids, solvents, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Black
Brand: Cabac
SKU: XLP20BK
Alternatively Known As: Thin Wall Heat Shrink Tubing, Black Heatshrink Sleeve, Polyolefin Heatshrink, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Operating Temperature: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): n/a mm x 50000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant
- Flexible and resistant to impact, abrasion, and UV radiation
- Made from Electron Beam Cross Linked Polyolefin
- Shrinks to approximately 50% of pre-shrink diameter
- UL certified and compliant with ASTM D2671
- Resistant to common fluids and solvents
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, preventing failures and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Heatshrink Thin Wall 19MM Black is available for immediate purchase. Ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
