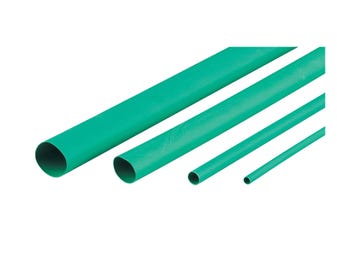

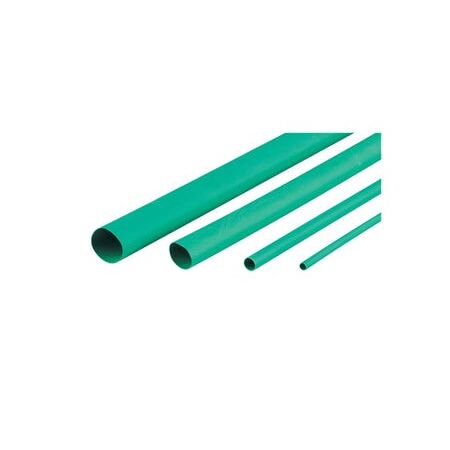

Heatshrink Thin Wall 19MM Green | Flame Retardant | UV Resistant | Flexible by Cabac
The Cabac Heatshrink Thin Wall 19MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to UV, abrasion, fluids, and solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 0.68mm x 50000mm x 191mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and UV resistant
- Resistant to common fluids, solvents and abrasion
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Continuous operating temperature range from -75 to +135 degrees Celsius
- Tensile strength of 10.4 MPa and elongation at break point of 400%
- Breakdown voltage of 25 kV/mm wall thickness
- Water absorption maximum 0.15%
- Voltage rating of 600V
- Heat shock resistance at 250 degrees Celsius for 4 hours
Professional Installation Requirements
- Professional installation recommended using appropriate heat gun such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection against impact and abrasion
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 19MM Green is available for immediate purchase, ideal for electrical insulation and protection applications.
