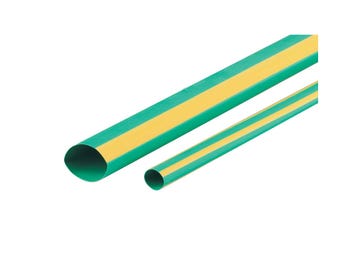

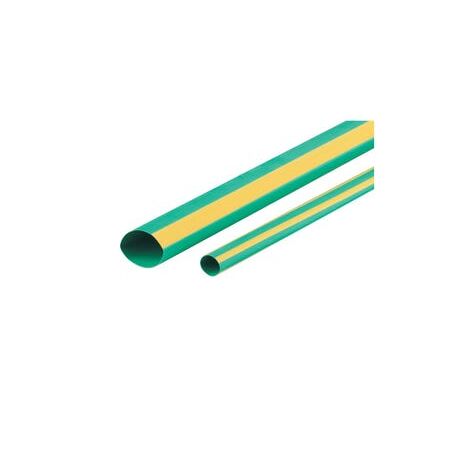

Heatshrink Thin Wall 19MM | Flame Retardant | UV Resistant | Green by Cabac
Heatshrink thin wall tubing with 19MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for industrial use, with UV resistance and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Box Green
Brand: Cabac
SKU: XLP20YG
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve
Technical Specifications
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): 19mm x 50000mm x 19mm
- Weight: 0.1 kg
Key Features
- Flame retardant thin wall heat shrink tubing
- Made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; refer to manufacturer for details.
Available Now
The Cabac Heatshrink Thin Wall 19MM Yellow/Green tubing is available for immediate purchase. Ideal for electrical insulation and protection in industrial and commercial applications.
