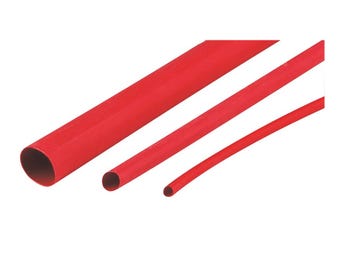

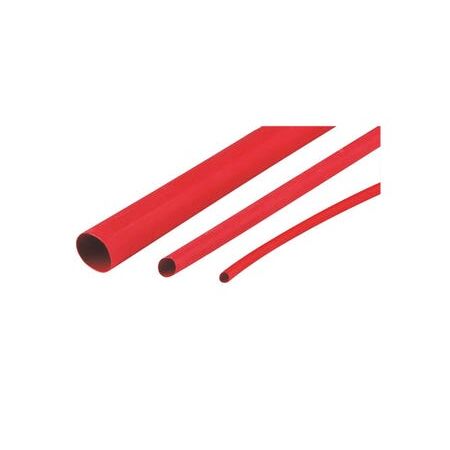

Heatshrink Thin Wall 19MM | Flame Retardant | UV Resistant | Red by Cabac

BRAND: CABAC

SKU: XLP20RD

$115.70 List price: $144.60

+ −

30 Days Return Delivery Options

Heatshrink thin wall tubing with 19mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.

Description

Product Name/Title: Heatshrink Thin Wall 19MM Red

Brand: Cabac

SKU: XLP20RD

Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Red Heatshrink Sleeve

Technical Specifications

Material: Electron Beam Cross Linked Polyolefin
Pre-shrink diameter: 19.1 mm
After-shrink diameter: 9.5 mm
Recovered wall thickness: 0.68 mm
Length: 50 m roll
Continuous Operating Temperature: -75 to +135 °C
Shrinkage Temperature: > 105 °C
Longitudinal Shrinkage: < 5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break Point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600 V
Heat Shock: 250 °C for 4 hours
Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
Dimensions (H x L x W): 19mm x 50000mm x 19mm
Weight: 0.1 kg

Key Features

Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
Operating temperature range from -75 to +135 degrees Celsius
Resistant to common fluids, solvents, and abrasion
UV resistant except for clear variants
Shrinks to approximately 50% of pre-shrink diameter upon heating
Flexible and impact resistant

Professional Installation Requirements

Installation requires heat application using a heat gun, preferably CABAC heat gun models HG2232 or HG2233, by a qualified professional to ensure proper shrinkage and insulation.

Applications

Electrical insulation and protection of conductors
Colour coding of electrical wiring
Mechanical and environmental protection in electrical and associated industries
Use in environments exposed to common fluids, solvents, and abrasion

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable and long-lasting material reduces need for frequent replacements
UV stabilization extends product life, reducing waste
Protects electrical components, enhancing energy efficiency and safety

Warranty Information

Warranty information not specified; typically covered by manufacturer standard warranty.

Available Now

The Cabac Heatshrink Thin Wall 19MM Red is available for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
