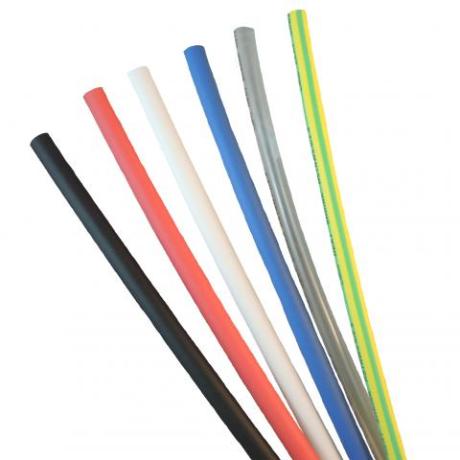

Heatshrink Thin Wall 2:1 Ratio | 100mm to 50mm | Green/Yellow | 1.2m Length | by Wattmaster
Heatshrink Thin Wall 2:1 Ratio tubing is perfect for electrical insulation and cable management. Made from durable Ethylene Vinyl Acetate, it features a shrink temperature above 110°C and a radial shrinking ratio greater than 50%. Ideal for heavy-duty applications, this flexible and UV-resistant tubing ensures reliable protection and color-coding for cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2:1 Ratio | 100mm to 50mm | Green/Yellow | 1.2m Length | by Wattmaster
Brand: Wattmaster
SKU: HSTNW100/50YG
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Cable Insulation Sleeve, Heat Shrink Sleeve
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 2:1
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Shrink Temperature: Above 110°C
- Tensile Strength: 15.5 MPa
- Elongation at Break: 580%
- Colour: Green / Yellow
- Length: 1.2 meters
- Diameter before shrink: 100mm
- Diameter after shrink: 50mm
- Dimensions (H x L x W): 10mm x 1200mm x 100mm
- Weight: 0.1 kg
Key Features
- Heatshrink suitable for heavy duty and general purpose use
- Material: Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Shrink Temperature above 110°C
- Radial Shrinking Ratio greater than 50%
- Longitudinal Shrinking Ratio of 10%
- High tensile strength of 15.5 MPa
- High elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection
- Colour-coding of cables
- Cable terminations and repairs
- General purpose heavy duty heatshrink applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and flame retardant material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Heatshrink Thin Wall 2:1 Ratio 100/50mm Green/Yellow 1.2m is available for immediate purchase, ideal for electrical insulation and cable management applications.
