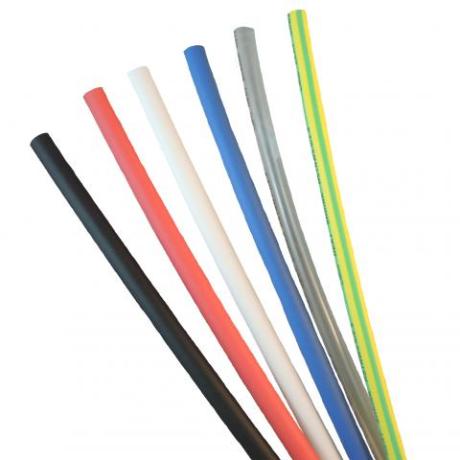

Heatshrink Thin Wall 2:1 Ratio | 2.5mm to 1.25mm | Yellow | @Each by Wattmaster
Heatshrink Thin Wall 2:1 Ratio tubing is perfect for electrical insulation and protection, featuring a shrink ratio of 2:1 and a vibrant yellow color. Made from durable Ethylene Vinyl Acetate, it offers high tensile strength and flexibility, making it ideal for heavy-duty applications and cable terminations. With a low shrink temperature above 110°C, this tubing ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2:1 Ratio | 2.5mm to 1.25mm | Yellow | @Each by Wattmaster
Brand: Wattmaster
SKU: HSTNW2.5/1.25YW
Alternatively Known As: Thin Wall Heatshrink Tubing, 2:1 Heatshrink Sleeve, Yellow Heatshrink Tube, Cable Insulation Sleeve
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 2:1 (Radial > 50%)
- Shrink Temperature: Above 110°C
- Tensile Strength: 15.5 MPa
- Elongation at Break: 580%
- Longitudinal Shrinking Ratio: 10%
- Colour: Yellow
- Length: 1.2 meters
- Diameter: 2.5mm shrinks to 1.25mm
- Dimensions (H x L x W): 5mm x 1200mm x 25mm
- Weight: 0.1 kg
Key Features
- Heatshrink suitable for heavy duty and general purpose use
- Material: Ethylene Vinyl Acetate
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Shrink Temperature above 110°C
- Radial Shrinking Ratio greater than 50%
- Longitudinal Shrinking Ratio of 10%
- High tensile strength of 15.5 MPa
- Elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection
- Colour-coding of cables
- Cable terminations and repairs
- General purpose heavy duty insulation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces cable waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Heatshrink Thin Wall 2:1 Ratio 2.5/1.25mm Yellow 1.2m is available for immediate purchase, ideal for electrical insulation and cable protection applications.
