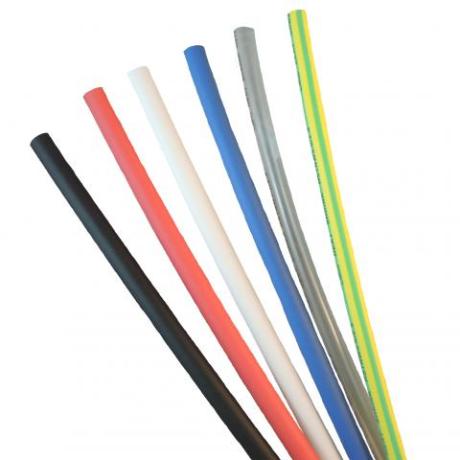

Heatshrink Thin Wall 2:1 Ratio 40/20mm Clear | UV Resistant | Flame Retardant | by Wattmaster
Heatshrink Thin Wall 2:1 Ratio tubing is perfect for electrical insulation and cable protection. Made from durable Ethylene Vinyl Acetate, it features a shrink ratio of 2:1, UV resistance, and flame retardant properties, making it ideal for heavy-duty applications. With a high tensile strength of 15.5 MPa and elongation at break of 580%, this tubing ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2:1 Ratio 40/20mm Clear | UV Resistant | Flame Retardant | by Wattmaster
Brand: Wattmaster
SKU: HSTNW40/20CL
Alternatively Known As: Thin Wall Heatshrink Tubing, 2:1 Heatshrink Sleeve, Clear Heatshrink Tube 40mm to 20mm
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 2:1 (Radial > 50%, Longitudinal 10%)
- Shrink Temperature: Above 110°C
- Tensile Strength: 15.5 MPa
- Elongation at Break: 580%
- UV Resistant and Flame Retardant
- Dimensions (H x L x W): 20mm x 1200mm x 40mm
- Weight: 0.1 kg
Key Features
- Heatshrink suitable for heavy duty and general purpose use
- Made from Ethylene Vinyl Acetate material
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- Shrink temperature above 110°C
- High tensile strength of 15.5 MPa
- Elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician or trained professional to ensure proper shrinkage and insulation.
Applications
- Electrical insulation for cables and wires
- Colour-coding of electrical wiring
- Cable terminations and repairs
- Protection against abrasion and environmental factors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable material reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Heatshrink Thin Wall 2:1 Ratio 40/20mm Clear 1.2m is available for immediate purchase, ideal for electrical insulation and cable protection applications.
