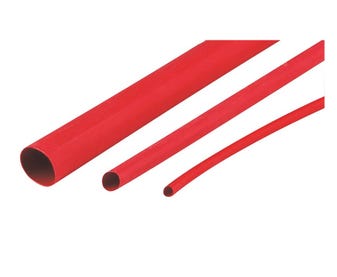

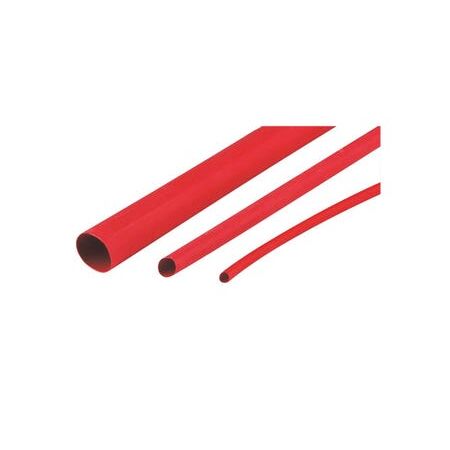

Heatshrink Thin Wall 2.4MM | Flame Retardant | Flexible | Red by Cabac
Heatshrink tubing with 2.4mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with flexibility and resistance to fluids, solvents, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Red 1.2M
Brand: Cabac
SKU: XLP2.5RD/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 2.4mm
- After-shrink diameter: 1.2mm
- Recovered wall thickness: 0.48mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250 °C for 4 hours
- Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
- Dimensions (H x L x W): 2.4mm x 1200mm x 2.4mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Provides protection against environmental damage, reducing electrical failures and waste
Warranty Information
Warranty details are subject to Cabac's standard product warranty policies.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM Red 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
